-15 to 55°C Environment I/O Terminal Block
-15 to 55°C Environment I/O Terminal Block
SKU:PRO-d025c8
Reliable -15 to 55°C Environment I/O Terminal Block for secure electrical connections. CE approved, brass terminals, ≤125V, 10A.
Regular price
$34.95
Regular price
Sale price
$34.95
Unit price
per
Initiate Order
-15 to 55°C Environment I/O Terminal Block
$34.95
Quantity: 1
Claim Your Seller Account
-15 to 55°C Environment I/O Terminal Block
$34.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

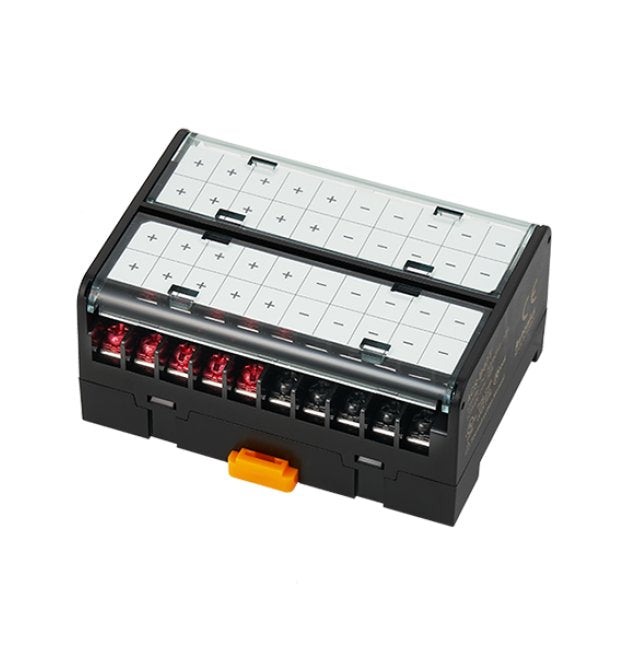

The -15 to 55°C Environment Input/Output (I/O) Terminal Block is a versatile solution for electrical connections in diverse settings. With a double-line design and 40 terminals, this terminal block offers reliable connectivity. It meets European Conformity (CE) standards, features brass terminal material, and polycarbonate base and case for durability. This terminal block has a rated voltage of ≤125V and a maximum current of 10A, making it ideal for various applications. Its compact design and DIN rail compatibility enhance installation flexibility.
Product Specifications
Specifications Alternating Current Ac Dielectric Strength At 506
2,700 V
Specifications Alternating Current Ac Rated Voltage
⤠125 V
Specifications Approval
European Conformity (CE)
Specifications Approximate Packaged Weight
149 g
Specifications Approximate Weight
120 g
Specifications Base Material
Polycarbonate
Specifications Case Material
Polycarbonate (PC)
Specifications Direct Current Dc Rated Voltage
⤠125 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-15 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Insulation Resistance At 500 Volt V Direct Curren
â¥1,000 MΩ
Specifications List Price
34.95 USD
Specifications Maximum Rated Current
10 A
Specifications Number Of Terminals
40 Each
Specifications Rated Frequency
50 Hz | 60 Hz
Specifications Terminal Material
Brass
Specifications Terminal Pitch
7.2 mm
Specifications Weight
0.2 lb
