-15 to 55°C Environment I/O Terminal Block
-15 to 55°C Environment I/O Terminal Block
SKU:PRO-889dad
Reliable -15 to 55°C I/O Terminal Block for secure connections in industrial settings. Compliant with CE and UL standards.
Regular price
$36.95
Regular price
Sale price
$36.95
Unit price
per
Initiate Order
-15 to 55°C Environment I/O Terminal Block
$36.95
Quantity: 1
Claim Your Seller Account
-15 to 55°C Environment I/O Terminal Block
$36.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

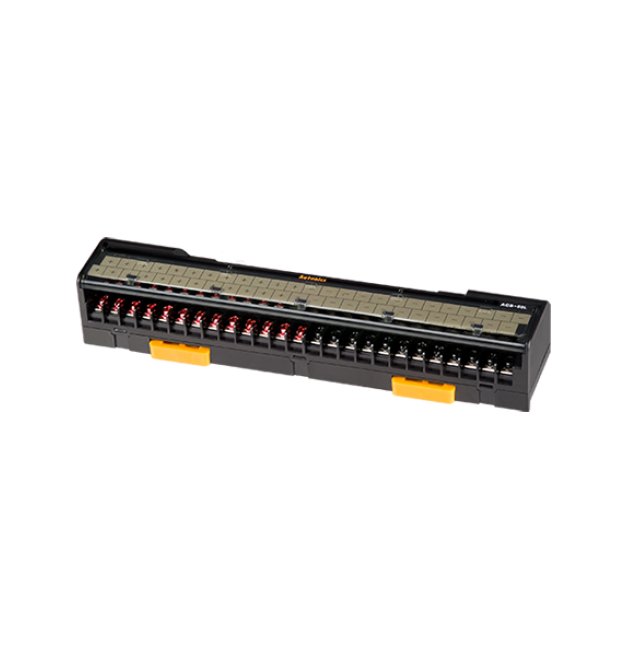

The -15 to 55°C Environment I/O Terminal Block is a top-quality product designed to meet the demanding needs of industrial environments. With 50 screw-type terminals, this terminal block allows for secure and reliable connections. It has a maximum rated current of 10A and a maximum AC/DC rated voltage of 125V, ensuring efficient power distribution. Made of Modified Polyphenylene Oxide (MPPO) and brass, this terminal block offers excellent durability. It complies with European Conformity (CE) and Underwriter Laboratories (UL) standards, guaranteeing safety and performance.
Product Specifications
Specifications Alternating Current Ac Dielectric Strength At 506
600 V
Specifications Applicable Cable
22-16 AWG | 0.30 to 1.25 mm²
Specifications Approval
European Conformity (CE) | Underwriter Laboratories (UL) Listed
Specifications Approximate Packaged Weight
189 g
Specifications Approximate Weight
141 g
Specifications Case Material
Modified Polyphenylene Oxide (MPPO)
Specifications Common Type
Screw (Top+COM, Bottom-COM)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-15 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Insulation Resistance At 500 Volt V Direct Curren
â¥1,000 MΩ
Specifications List Price
36.95 USD
Specifications Maximum Alternating Current Ac Rated Voltage
125 V
Specifications Maximum Direct Current Dc Rated Voltage
125
Specifications Maximum Rated Current
10 A
Specifications Number Of Terminals
50 Each
Specifications Rated Frequency
50 Hz | 60 Hz
Specifications Terminal Pin Material
Brass
Specifications Terminal Pitch
7.0 mm
Specifications Terminal Type
Screw
Specifications Weight
1 lb
