-15 to 55°C Environment I/O Terminal Block
-15 to 55°C Environment I/O Terminal Block
SKU:PRO-ecf000
High-quality relay terminal block with 32 relays, Hirose connector, NPN polarity, and 24VDC input voltage for reliable performance in -15 to 55°C environments.
Regular price
$432.95
Regular price
Sale price
$432.95
Unit price
per
Initiate Order
-15 to 55°C Environment I/O Terminal Block
$432.95
Quantity: 1
Claim Your Seller Account
-15 to 55°C Environment I/O Terminal Block
$432.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

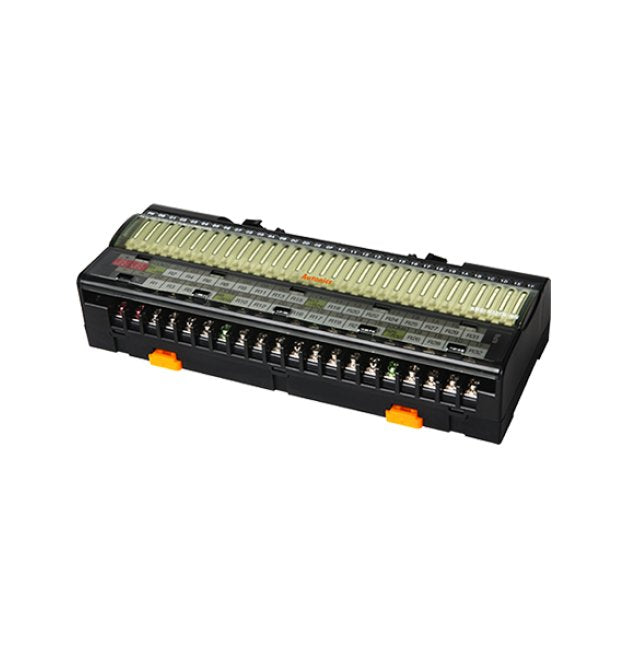

The -15 to 55°C Environment I/O Terminal Block is a high-quality relay terminal block featuring 32 relays, Hirose connector, and Takamisawa (Fujitsu NYP24W-K) for reliable performance. With NPN polarity and a 24VDC input voltage, this terminal block is designed to handle a maximum rated current of 2A. The polyamide 66 body material, brass terminal pins, and MPPO case material ensure durability. Red and blue LED indicators provide visual operation feedback, while the Hirose connector and applicable cable range of 22-16 AWG make installation easy. This product is European Conformity (CE) and cULus Listed, meeting stringent industry standards.
Product Specifications
Specifications Alternating Current Ac Dielectric Strength Betwee
750 V
Specifications Alternating Current Ac Rated Voltage
250 V
Specifications Applicable Cable
22-16 AWG | 0.30 to 1.25 mm²
Specifications Applied Relay
NYP24W-K [TAKAMISAWA (Fujitsu)]
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Packaged Weight
463 g
Specifications Approximate Weight
370 g
Specifications Body Material
Polyamide 66 (G25%)
Specifications Case Material
Modified Polyphenylene Oxide (MPPO)
Specifications Connector Type
Hirose Connector
Specifications Current Consumption
⤠13.5 mA | ⤠8.5 mA
Specifications Direct Current Dc Rated Voltage
24 V | 30 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-15 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Input Direct Current Dc Voltage
12 to 24 V
Specifications Input Logic
Negative-Positive-Negative (NPN)
Specifications Insulation Resistance At 500 Volt V Direct Curren
â¥1,000 MΩ
Specifications List Price
432.95 USD
Specifications Maximum Rated Current
2 A
Specifications Number Of Connector Pins
40
Specifications Number Of Relay Points
32-Point (8-Point/1 COM)
Specifications Number Of Terminals
32 Each
Specifications Operation And Disconnection Indicator
Blue Light Emitting Diode (LED)
Specifications Power Indicator
Red Light Emitting Diode (LED)
Specifications Rated Current For 1 Com
8 A
Specifications Rated Current For 1 Point
2 A
Specifications Rated Load Voltage And Current
250VAC/2A, 30VDC at (=) 2A(2A/1, 8A/1 COM)
Specifications Relay Type
Takamisawa (Fujitsu) NYP
Specifications Terminal Pin Material
Brass
Specifications Weight
1.2 lb
