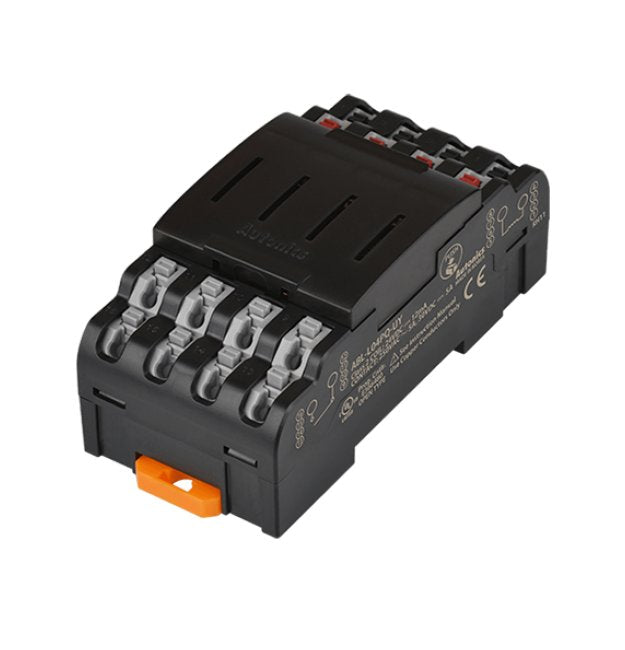

-15 to 55°C Environment I/O Terminal Block
-15 to 55°C Environment I/O Terminal Block
SKU:PRO-2ea8e6
Reliable -15 to 55°C I/O Terminal Block with NPN or PNP Input, 24VDC, CE/cULus Listed, and IP20 Protection.
Regular price
$72.95
Regular price
Sale price
$72.95
Unit price
per
Initiate Order
-15 to 55°C Environment I/O Terminal Block
$72.95
Quantity: 1
Claim Your Seller Account
-15 to 55°C Environment I/O Terminal Block
$72.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your control systems with the -15 to 55°C Environment I/O Terminal Block. Featuring NPN or PNP Input options, 24VDC, and CE/cULus certifications, this terminal block ensures reliable performance in temperatures ranging from -15 to 55°C. With a solid brass conducting plate, Blue LED indicator, and IP20 protection, this product is designed for durability and efficiency. Suitable for various cable types and easy to install with screwless terminals.
Product Specifications
Accessories Accessories
Jumper Bar: 1
Specifications 24 Volt V Direct Current Dc Rated Voltage Toleran
±10 %
Specifications Alternating Current Ac Dielectric Strength Betwee
1,000 V
Specifications Alternating Current Ac Rated Voltage
250 V
Specifications Applicable Cable Diameter Solid Wire 60 Degree Ce
0.6 to 1.25 mm
Specifications Applicable Cable Stranded Wire 60 Degree Celsius
22-16 AWG
Specifications Applied Relay
PQ1a-24V [MATSUSHITA (Panasonic)]
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Packaged Weight
148 g
Specifications Approximate Weight
92 g
Specifications Base Material
Modified Polyphenylene Oxide (MPPO)
Specifications Case Material
Modified Polyphenylene Oxide (MPPO)
Specifications Conducting Plate
Brass
Specifications Current Consumption
⤠20 mA
Specifications Direct Current Dc Rated Voltage
24 V | 30 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-15 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Insulation Resistance At 500 Volt V Direct Curren
â¥1,000 MΩ
Specifications List Price
72.95 USD
Specifications Number Of Relay Points
4-Point
Specifications Operation Indicator
Blue Light Emitting Diode (LED)
Specifications Protection Structure
Ingress Protection (IP) 20 (International Electrotechnical Commission (IEC) Standard)
Specifications Rated Current
5 A
Specifications Rated Frequency
50 Hz | 60 Hz
Specifications Terminal Block Material
Polyamide 66
Specifications Terminal Pitch
10.2 mm
Specifications Terminal Type
Screwless
Specifications Weight
0.2 lb
