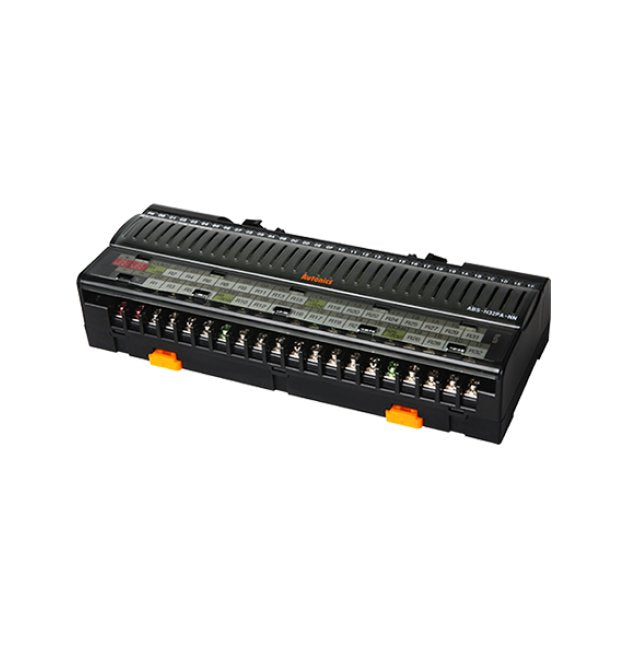

-15 to 55°C Environment I/O Terminal Block
-15 to 55°C Environment I/O Terminal Block
SKU:PRO-73489f
Reliable -15 to 55°C I/O Terminal Block with 32 relays, CE and cULus approved, LED indicators & Hirose connector.
Regular price
$336.95
Regular price
Sale price
$336.95
Unit price
per
Initiate Order
-15 to 55°C Environment I/O Terminal Block
$336.95
Quantity: 1
Claim Your Seller Account
-15 to 55°C Environment I/O Terminal Block
$336.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The -15 to 55°C Environment I/O Terminal Block is a reliable solution for industrial connectivity needs. With 32 relays (250VAC 2A, 30VDC 2A), Hirose connector, and Matsushita (Panasonic) APAN3124 relay, it ensures efficient operation in a wide temperature range. Featuring CE and cULus approval, polyamide and MPPO materials, LED indicators, and high dielectric strength, this terminal block guarantees safety and performance. Suitable for various applications, this terminal block offers secure connections and precise control for your systems.
Product Specifications
Specifications Alternating Current Ac Dielectric Strength Betwee
1,000 V
Specifications Alternating Current Ac Rated Voltage
250 V
Specifications Applicable Cable
22-16 AWG | 0.30 to 1.25 mm²
Specifications Applied Relay
APAN3124 [MATSUSHITA (Panasonic)]
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Packaged Weight
438 g
Specifications Approximate Weight
345 g
Specifications Body Material
Polyamide 66 (G25%)
Specifications Case Material
Modified Polyphenylene Oxide (MPPO)
Specifications Connector Type
Hirose Connector
Specifications Current Consumption
⤠13 mA | ⤠8 mA
Specifications Direct Current Dc Rated Voltage
24 V | 30 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-15 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Input Direct Current Dc Voltage
12 to 24 V
Specifications Input Logic
Positive-Negative-Positive (PNP)
Specifications Insulation Resistance At 500 Volt V Direct Curren
â¥1,000 MΩ
Specifications List Price
336.95 USD
Specifications Maximum Rated Current
2 A
Specifications Number Of Connector Pins
40
Specifications Number Of Relay Points
32-Point (8-Point/1 COM)
Specifications Number Of Terminals
32 Each
Specifications Operation And Disconnection Indicator
Blue Light Emitting Diode (LED)
Specifications Power Indicator
Red Light Emitting Diode (LED)
Specifications Rated Current For 1 Com
8 A
Specifications Rated Current For 1 Point
2 A
Specifications Rated Load Voltage And Current
250VAC/2A, 30VDC at (=) 2A(2A/1, 8A/1 COM)
Specifications Relay Type
Matsushita (Panasonic) PA
Specifications Terminal Pin Material
Brass
Specifications Weight
1.2 lb
