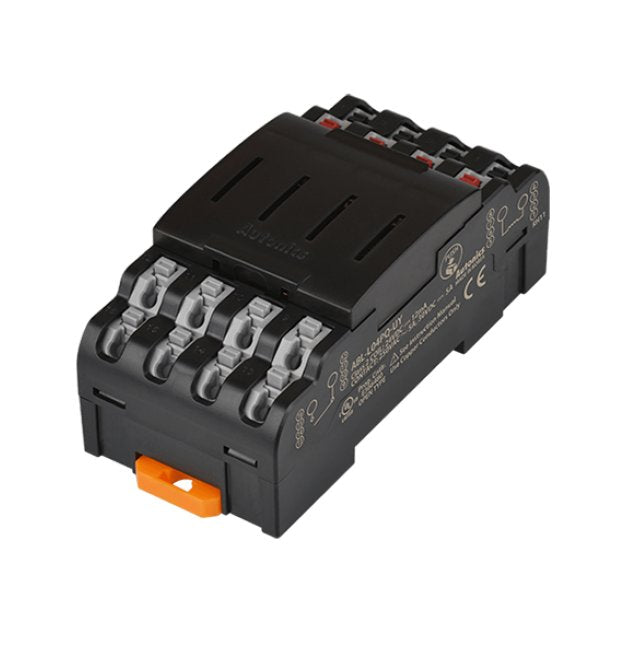

-15 to 55°C Environment I/O Terminal Block
-15 to 55°C Environment I/O Terminal Block
SKU:PRO-90f2e5
Highly durable -15 to 55°C I/O Terminal Block with 4-point relay connectivity, blue LED indicator, CE & cULus listed, IP 20 protection.
Regular price
$86.95
Regular price
Sale price
$86.95
Unit price
per
Initiate Order
-15 to 55°C Environment I/O Terminal Block
$86.95
Quantity: 1
Claim Your Seller Account
-15 to 55°C Environment I/O Terminal Block
$86.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your industrial control systems with the -15 to 55°C Environment I/O Terminal Block. Designed for reliability, this terminal block features NPN or PNP input options, 4-point relay connectivity, and a 24VDC power supply. With a rugged brass conducting plate and a blue LED indicator, it offers enhanced durability and easy monitoring. Meets European Conformity (CE) and cULus Listed standards, with IP 20 protection. Suitable for a wide temperature range and varying humidity levels.
Product Specifications
Accessories Accessories
Jumper Bar: 1
Specifications 24 Volt V Direct Current Dc Rated Voltage Toleran
±10 %
Specifications Alternating Current Ac Dielectric Strength Betwee
1,000 V
Specifications Alternating Current Ac Rated Voltage
250 V
Specifications Applicable Cable Diameter Solid Wire 60 Degree Ce
0.6 to 1.25 mm
Specifications Applicable Cable Stranded Wire 60 Degree Celsius
22-16 AWG
Specifications Applied Relay
G6B-1174P-FD-US [OMRON]
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Packaged Weight
143 g
Specifications Approximate Weight
87 g
Specifications Base Material
Modified Polyphenylene Oxide (MPPO)
Specifications Case Material
Modified Polyphenylene Oxide (MPPO)
Specifications Conducting Plate
Brass
Specifications Current Consumption
⤠20 mA
Specifications Direct Current Dc Rated Voltage
24 V | 30 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-15 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Insulation Resistance At 500 Volt V Direct Curren
â¥1,000 MΩ
Specifications List Price
86.95 USD
Specifications Number Of Relay Points
4-Point
Specifications Operation Indicator
Blue Light Emitting Diode (LED)
Specifications Protection Structure
Ingress Protection (IP) 20 (International Electrotechnical Commission (IEC) Standard)
Specifications Rated Current
5 A
Specifications Rated Frequency
50 Hz | 60 Hz
Specifications Terminal Block Material
Polyamide 66
Specifications Terminal Pitch
10.2 mm
Specifications Terminal Type
Screwless
Specifications Weight
0.2 lb
