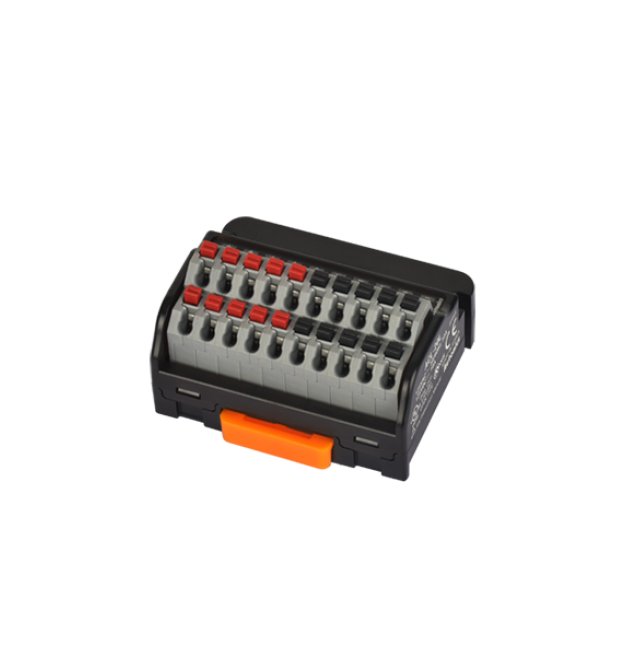

-15 to 55°C Environment Input/Output Terminal Block
-15 to 55°C Environment Input/Output Terminal Block
SKU:PRO-664133
Reliable screwless terminal block for 20 terminals in -15 to 55°C environment, CE/cULus listed.
Regular price
$26.95
Regular price
Sale price
$26.95
Unit price
per
Initiate Order
-15 to 55°C Environment Input/Output Terminal Block
$26.95
Quantity: 1
Claim Your Seller Account
-15 to 55°C Environment Input/Output Terminal Block
$26.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience reliable connectivity with our -15 to 55°C Environment Input/Output Terminal Block. This screwless terminal block features 20 terminals, left-right COM configuration, and can handle up to 250VDC/VAC 50/60Hz. With a robust design including Polyamide 66 terminal material, tin-plated copper conducting plate, and Polycarbonate base and case material, it ensures durability in diverse environments. Additionally, it meets European Conformity (CE) and cULus standards for Canada and the United States, making it ideal for both industrial and institutional applications.
Product Specifications
Specifications Alternating Current Ac Dielectric Strength At 506
3,000 V
Specifications Alternating Current Ac Rated Voltage
â¤250 V
Specifications Applicable Cable Diameter Solid Wire 60 Degree Ce
0.6 to 1.25 mm
Specifications Applicable Cable Stranded Wire 60 Degree Celsius
22-16 AWG
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Packaged Weight
71 g
Specifications Approximate Weight
42 g
Specifications Base Material
Polycarbonate
Specifications Case Material
Polycarbonate (PC)
Specifications Common Type
Left+COM, Right-COM
Specifications Conducting Plate
Tin Plated Copper
Specifications Direct Current Dc Rated Voltage
â¤250 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-15 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Insulation Resistance At 500 Volt V Direct Curren
â¥1,000 MΩ
Specifications List Price
26.95 USD
Specifications Maximum Rated Current
10 A
Specifications Number Of Terminals
20 Each
Specifications Rated Frequency
50 Hz | 60 Hz
Specifications Stripped Wire Length
8 to 10 mm
Specifications Terminal Material
Polyamide 66
Specifications Terminal Pitch
5.0 mm
Specifications Terminal Type
Screwless
Specifications Weight
0.2 lb
