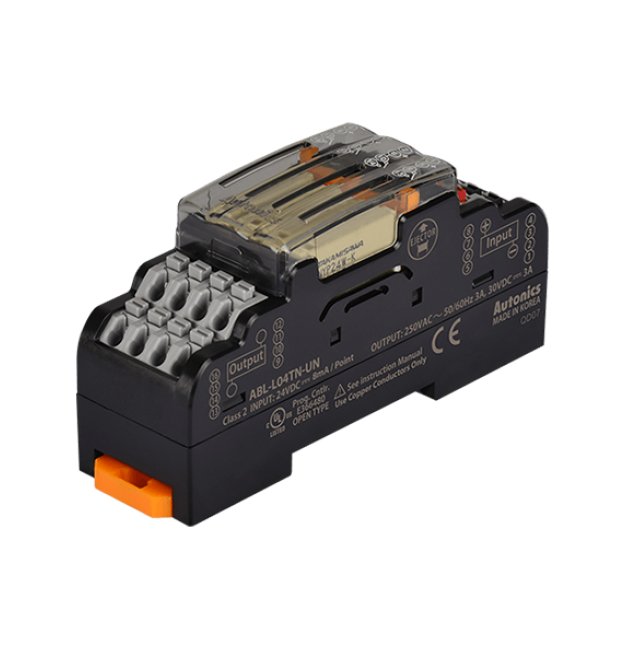

-15 to 55°C Environment Terminal Block
-15 to 55°C Environment Terminal Block
SKU:PRO-430356
Enhance connectivity in extreme temperatures with our -15 to 55°C Environment Terminal Block. NPN/PNP input options, CE/cULus listed, 3A current, and screwless terminals for easy installation.
Regular price
$76.95
Regular price
Sale price
$76.95
Unit price
per
Initiate Order
-15 to 55°C Environment Terminal Block
$76.95
Quantity: 1
Claim Your Seller Account
-15 to 55°C Environment Terminal Block
$76.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your connectivity with our -15 to 55°C Environment Terminal Block, designed for reliability in challenging ambient temperatures. This terminal block offers NPN or PNP input options, 3A rated current, blue LED indicator, and screwless terminals for easy installation. With European Conformity (CE) and cULus listings, brass conducting plates, and 1000MΩ insulation resistance, it ensures safety and performance. Ideal for industrial applications requiring a sturdy build and wide temperature tolerance.
Product Specifications
Accessories Accessories
Jumper Bar: 1
Specifications 24 Volt V Direct Current Dc Rated Voltage Toleran
±10 %
Specifications Alternating Current Ac Dielectric Strength Betwee
750 V
Specifications Alternating Current Ac Rated Voltage
250 V
Specifications Applicable Cable Diameter Solid Wire 60 Degree Ce
0.6 to 1.25 mm
Specifications Applicable Cable Stranded Wire 60 Degree Celsius
22-16 AWG
Specifications Applied Relay
NYP24W-K [TAKAMISAWA (Fujitsu)]
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Packaged Weight
128 g
Specifications Approximate Weight
75 g
Specifications Base Material
Polyphenylene Sulfide
Specifications Case Material
Polyphenylene Sulfide
Specifications Conducting Plate
Brass
Specifications Current Consumption
⤠8 mA
Specifications Direct Current Dc Rated Voltage
24 V | 30 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-15 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Insulation Resistance At 500 Volt V Direct Curren
â¥1,000 MΩ
Specifications List Price
76.95 USD
Specifications Number Of Relay Points
4-Point
Specifications Operation Indicator
Blue Light Emitting Diode (LED)
Specifications Protection Structure
Ingress Protection (IP) 20 (International Electrotechnical Commission (IEC) Standard)
Specifications Rated Current
3 A
Specifications Rated Frequency
50 Hz | 60 Hz
Specifications Terminal Block Material
Polyamide 66
Specifications Terminal Pitch
5.0 mm
Specifications Terminal Type
Screwless
Specifications Weight
0.2 lb
