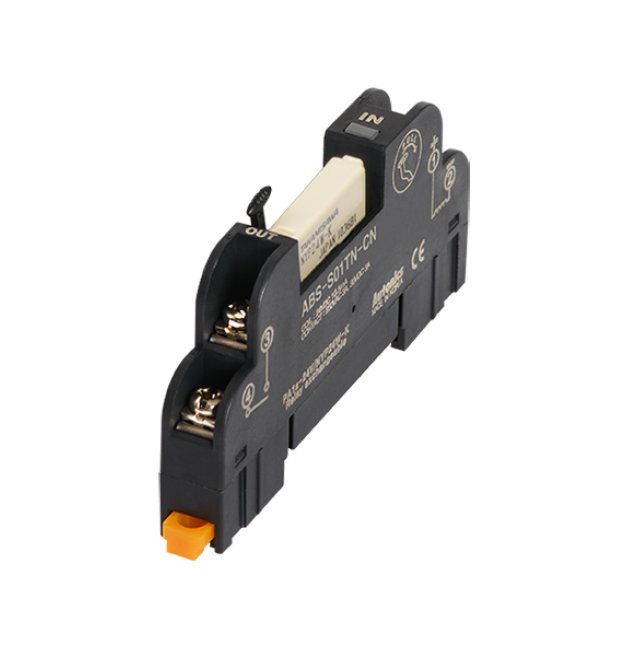

-15 to 55°C I/O Terminal Block
-15 to 55°C I/O Terminal Block
SKU:PRO-4e5990
Versatile -15 to 55°C I/O Terminal Block with CE/UL approvals, brass pins, blue LED indicator, and 3A rated current.
Regular price
$18.95
Regular price
Sale price
$18.95
Unit price
per
Initiate Order
-15 to 55°C I/O Terminal Block
$18.95
Quantity: 1
Claim Your Seller Account
-15 to 55°C I/O Terminal Block
$18.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The -15 to 55°C I/O Terminal Block is a reliable and durable screw type relay terminal block designed for various applications. With features like 1 relay, Takamisawa NYP24W-K, 24VDC input, and approvals including CE and UL listings, this terminal block ensures safe and efficient performance. It has a blue LED operation indicator, brass terminal pins, and a polyamide 6 housing for robustness. Suitable for 22-16 AWG cables, it offers a rated current of 3A and dielectric strengths meeting industry standards. Ideal for environments with temperatures ranging from -15 to 55°C.
Product Specifications
Specifications Alternating Current Ac Dielectric Strength Betwee
750 V
Specifications Alternating Current Ac Rated Voltage
250 V
Specifications Applicable Cable
22-16 AWG | 0.30 to 1.25 mm²
Specifications Applied Relay
NYP24W-K [TAKAMISAWA (Fujitsu)]
Specifications Approval
European Conformity (CE) | Underwriter Laboratories (UL) Listed
Specifications Approximate Packaged Weight
324.5 g
Specifications Approximate Weight
22.2 g
Specifications Base Material
Polyamide 6
Specifications Case Material
Polyamide 6
Specifications Connector Type
Screw
Specifications Current Consumption
⤠8.5 mA
Specifications Direct Current Dc Rated Voltage
24 V | 30 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-15 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Input Direct Current Dc Voltage
12 to 24 V
Specifications Insulation Resistance At 500 Volt V Direct Curren
â¥1,000 MΩ
Specifications List Price
18.95 USD
Specifications Maximum Rated Current
3 A
Specifications Number Of Relay Points
1-Point
Specifications Number Of Terminals
1 Each
Specifications Operation Indicator
Blue Light Emitting Diode (LED)
Specifications Rated Current
3 A
Specifications Relay Type
Takamisawa (Fujitsu) NYP
Specifications Terminal Pin Material
Brass
Specifications Weight
0.56 lb
