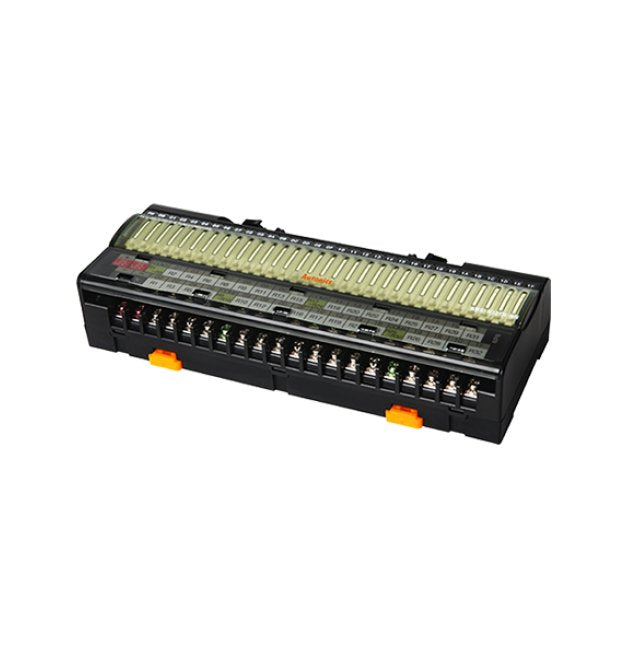

-15 to 55°C I/O Terminal Block
-15 to 55°C I/O Terminal Block
SKU:PRO-135d60
Durable I/O Terminal Block for industrial applications, -15 to 55°C range, CE and cULus Listed.
Regular price
$432.95
Regular price
Sale price
$432.95
Unit price
per
Initiate Order
-15 to 55°C I/O Terminal Block
$432.95
Quantity: 1
Claim Your Seller Account
-15 to 55°C I/O Terminal Block
$432.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The -15 to 55°C I/O Terminal Block is a reliable solution for industrial applications requiring precise temperature handling. With a body made of Polyamide 66 and brass terminal pins, this terminal block ensures durability and efficient performance. It features a Hirose connector, 32 relays, and Takamisawa NYP24W-K relay type. This product is European Conformity (CE) and cULus Listed, meeting stringent quality and safety standards.
Product Specifications
Specifications Alternating Current Ac Dielectric Strength Betwee
750 V
Specifications Alternating Current Ac Rated Voltage
250 V
Specifications Applicable Cable
22-16 AWG | 0.30 to 1.25 mm²
Specifications Applied Relay
NYP24W-K [TAKAMISAWA (Fujitsu)]
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Packaged Weight
463 g
Specifications Approximate Weight
370 g
Specifications Body Material
Polyamide 66 (G25%)
Specifications Case Material
Modified Polyphenylene Oxide (MPPO)
Specifications Connector Type
Hirose Connector
Specifications Current Consumption
⤠13.5 mA | ⤠8.5 mA
Specifications Direct Current Dc Rated Voltage
24 V | 30 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-15 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Input Direct Current Dc Voltage
12 to 24 V
Specifications Input Logic
Positive-Negative-Positive (PNP)
Specifications Insulation Resistance At 500 Volt V Direct Curren
â¥1,000 MΩ
Specifications List Price
432.95 USD
Specifications Maximum Rated Current
2 A
Specifications Number Of Connector Pins
40
Specifications Number Of Relay Points
32-Point (8-Point/1 COM)
Specifications Number Of Terminals
32 Each
Specifications Operation And Disconnection Indicator
Blue Light Emitting Diode (LED)
Specifications Power Indicator
Red Light Emitting Diode (LED)
Specifications Rated Current For 1 Com
8 A
Specifications Rated Current For 1 Point
2 A
Specifications Rated Load Voltage And Current
250VAC/2A, 30VDC at (=) 2A(2A/1, 8A/1 COM)
Specifications Relay Type
Takamisawa (Fujitsu) NYP
Specifications Terminal Pin Material
Brass
Specifications Weight
1.2 lb
