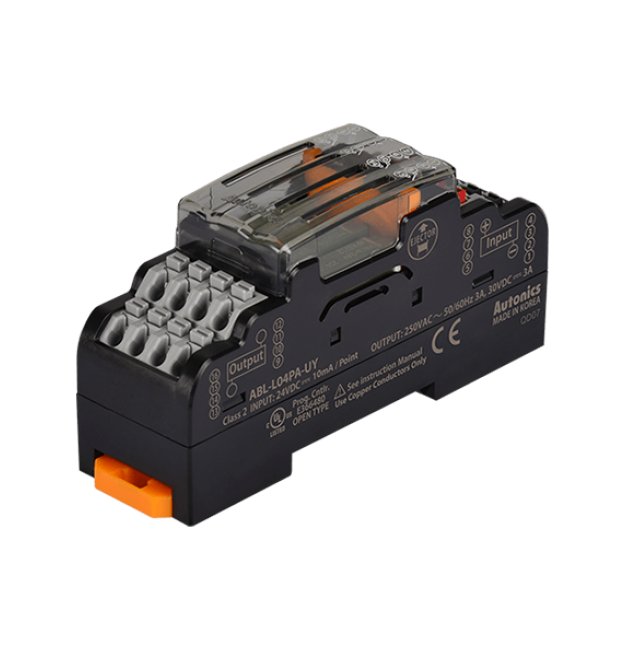

The -15 to 55°C Environment Ambient Temperature I/O Terminal Block is a reliable solution for industrial connectivity needs. With NPN or PNP input options, a rated current of 3A, and a durable construction featuring polyamide 66 terminal block material, this product ensures secure connections in a wide temperature range. The Ingress Protection (IP) 20 structure, CE approval, and cULus listing guarantee compliance with international standards for safety and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Accessories Accessories
Jumper Bar: 1
Specifications 24 Volt V Direct Current Dc Rated Voltage Toleran
±10 %
Specifications Alternating Current Ac Dielectric Strength Betwee
1,000 V
Specifications Alternating Current Ac Rated Voltage
250 V
Specifications Applicable Cable Diameter Solid Wire 60 Degree Ce
0.6 to 1.25 mm
Specifications Applicable Cable Stranded Wire 60 Degree Celsius
22-16 AWG
Specifications Applied Relay
APAN3124 [MATSUSHITA (Panasonic)]
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Packaged Weight
125 g
Specifications Approximate Weight
72 g
Specifications Base Material
Polyphenylene Sulfide
Specifications Case Material
Polyphenylene Sulfide
Specifications Conducting Plate
Brass
Specifications Current Consumption
⤠8 mA
Specifications Direct Current Dc Rated Voltage
24 V | 30 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-15 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Insulation Resistance At 500 Volt V Direct Curren
â¥1,000 MΩ
Specifications List Price
67.95 USD
Specifications Number Of Relay Points
4-Point
Specifications Operation Indicator
Blue Light Emitting Diode (LED)
Specifications Protection Structure
Ingress Protection (IP) 20 (International Electrotechnical Commission (IEC) Standard)
Specifications Rated Current
3 A
Specifications Rated Frequency
50 Hz | 60 Hz
Specifications Terminal Block Material
Polyamide 66
Specifications Terminal Pitch
5.0 mm
Specifications Terminal Type
Screwless
Specifications Weight
0.2 lb
