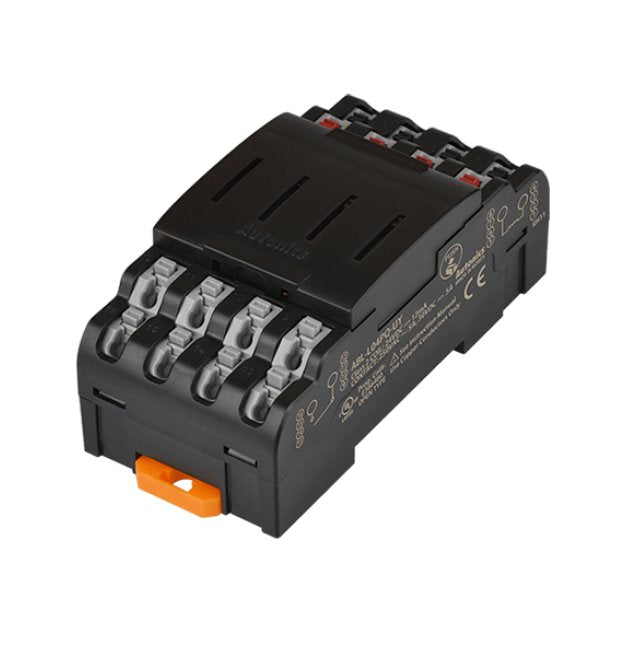

-15 to 55°C I/O Terminal Block
-15 to 55°C I/O Terminal Block
SKU:PRO-2a4188
High-performing -15 to 55°C I/O Terminal Block with NPN/PNP input, 24VDC, and CE/cULus approvals for industrial applications.
Regular price
$90.95
Regular price
Sale price
$90.95
Unit price
per
Initiate Order
-15 to 55°C I/O Terminal Block
$90.95
Quantity: 1
Claim Your Seller Account
-15 to 55°C I/O Terminal Block
$90.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The -15 to 55°C I/O Terminal Block is a reliable and robust solution designed for seamless integration in industrial environments. This terminal block features a varistor installed type, NPN or PNP input compatibility, and a 24VDC rating. With a Current Consumption of ≤ 20 mA and a Rated Current of 5 A, this block ensures efficient and safe operation. The brass conducting plate, IP20 protection structure, and CE/cULus approvals guarantee high performance and compliance with international standards.
Product Specifications
Accessories Accessories
Jumper Bar: 1
Specifications 24 Volt V Direct Current Dc Rated Voltage Toleran
±10 %
Specifications Alternating Current Ac Dielectric Strength Betwee
300 V
Specifications Alternating Current Ac Rated Voltage
250 V
Specifications Applicable Cable Diameter Solid Wire 60 Degree Ce
0.6 to 1.25 mm
Specifications Applicable Cable Stranded Wire 60 Degree Celsius
22-16 AWG
Specifications Applied Relay
G6B-1174P-FD-US [OMRON]
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Packaged Weight
144 g
Specifications Approximate Weight
88 g
Specifications Base Material
Modified Polyphenylene Oxide (MPPO)
Specifications Case Material
Modified Polyphenylene Oxide (MPPO)
Specifications Conducting Plate
Brass
Specifications Current Consumption
⤠20 mA
Specifications Direct Current Dc Rated Voltage
24 V | 30 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-15 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Insulation Resistance At 500 Volt V Direct Curren
â¥1,000 MΩ
Specifications List Price
90.95 USD
Specifications Number Of Relay Points
4-Point
Specifications Operation Indicator
Blue Light Emitting Diode (LED)
Specifications Protection Structure
Ingress Protection (IP) 20 (International Electrotechnical Commission (IEC) Standard)
Specifications Rated Current
5 A
Specifications Rated Frequency
50 Hz | 60 Hz
Specifications Terminal Block Material
Polyamide 66
Specifications Terminal Pitch
10.2 mm
Specifications Terminal Type
Screwless
Specifications Weight
0.2 lb
