-15 to 55°C I/O Terminal Block
-15 to 55°C I/O Terminal Block
SKU:PRO-7a30bb
Reliable -15 to 55°C I/O Terminal Block for NPN relay applications. CE and cULus certified with wide voltage range.
Regular price
$430.95
Regular price
Sale price
$430.95
Unit price
per
Initiate Order
-15 to 55°C I/O Terminal Block
$430.95
Quantity: 1
Claim Your Seller Account
-15 to 55°C I/O Terminal Block
$430.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

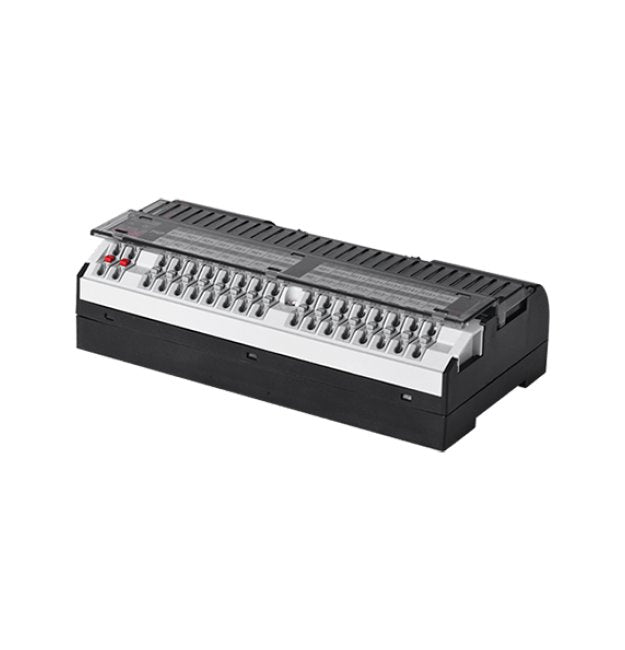

The -15 to 55°C I/O Terminal Block is a reliable solution for relay applications, featuring a NPN input, 16-point Omron G6B relay terminal block with a Hirose connector type. Designed for optimal performance in a wide temperature range and with a current consumption of ≤ 20 mA, this terminal block ensures efficient operation even in challenging environmental conditions. With CE and cULus certifications, it meets high industry standards, offering 250V AC rated voltage and 24V DC rated voltage tolerance of ±10%.
Product Specifications
Accessories Accessories
Jumper Bar: 2
Specifications 24 Volt V Direct Current Dc Rated Voltage Toleran
±10 %
Specifications Alternating Current Ac Dielectric Strength Betwee
1,000 V
Specifications Alternating Current Ac Rated Voltage
250 V
Specifications Applicable Cable Diameter Solid Wire 60 Degree Ce
0.6 to 1.25 mm
Specifications Applicable Cable Stranded Wire 60 Degree Celsius
22-16 AWG
Specifications Applied Relay
G6B-1174P-FD-US [OMRON]
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Packaged Weight
446 g
Specifications Approximate Weight
348 g
Specifications Base Material
Modified Polyphenylene Oxide (MPPO)
Specifications Case Material
Modified Polyphenylene Oxide (MPPO)
Specifications Cover Material
Polycarbonates (PC)
Specifications Current Consumption
⤠20 mA
Specifications Direct Current Dc Rated Voltage
24 V | 30 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-15 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Insulation Resistance At 500 Volt V Direct Curren
â¥1,000 MΩ
Specifications List Price
430.95 USD
Specifications Number Of Relay Points
16-Point
Specifications Operation Indicator
Blue Light Emitting Diode (LED)
Specifications Power Indicator
Red Light Emitting Diode (LED)
Specifications Protection Structure
Ingress Protection (IP) 20 (International Electrotechnical Commission (IEC) Standard)
Specifications Rated Current
3 A
Specifications Rated Frequency
50 Hz | 60 Hz
Specifications Terminal Block Material
Polycarbonate
Specifications Terminal Pitch
â¥7.8 mm
Specifications Terminal Type
Screwless
Specifications Weight
0.2 lb
