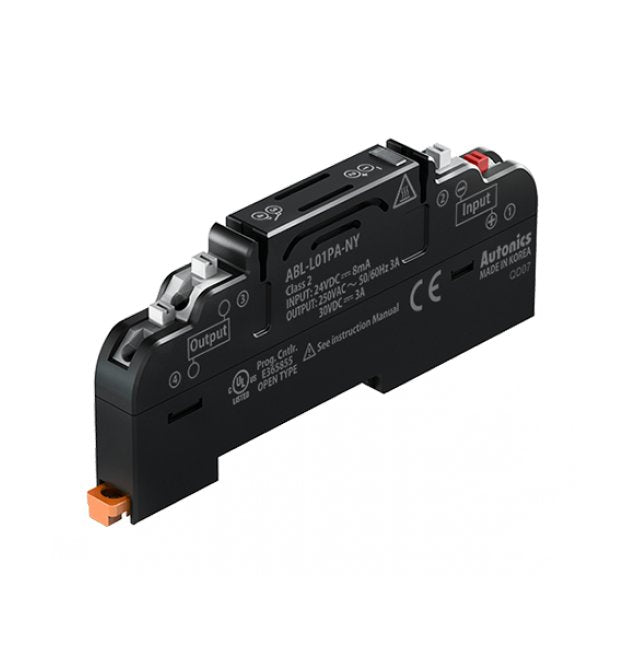

-15 to 55°C I/O Terminal Block
-15 to 55°C I/O Terminal Block
SKU:PRO-ea1f7b
Relay terminal block for PNP input at 24VDC with -15 to 55°C range, IP20 protection, and CE/cULus approval.
Regular price
$19.95
Regular price
Sale price
$19.95
Unit price
per
Initiate Order
-15 to 55°C I/O Terminal Block
$19.95
Quantity: 1
Claim Your Seller Account
-15 to 55°C I/O Terminal Block
$19.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Meet your relay connection needs with the -15 to 55°C I/O Terminal Block. Designed for PNP input at 24VDC, this terminal block offers an operational range of -15 to 55°C and complies with IP20 protection standards. The brass conducting plate and Polyphenylene Sulfide construction ensure durability, while the blue LED indicator enhances visibility. With CE and cULus approvals, this terminal block is suitable for various applications.
Product Specifications
Specifications 24 Volt V Direct Current Dc Rated Voltage Toleran
±10 %
Specifications Alternating Current Ac Dielectric Strength Betwee
750 V
Specifications Alternating Current Ac Rated Voltage
250 V
Specifications Applicable Cable Diameter Solid Wire 60 Degree Ce
0.6 to 1.25 mm
Specifications Applicable Cable Stranded Wire 60 Degree Celsius
22-16 AWG
Specifications Applied Relay
NYP24W-K [TAKAMISAWA (Fujitsu)]
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Packaged Weight
135 g
Specifications Approximate Weight
21 g
Specifications Base Material
Polyphenylene Sulfide
Specifications Case Material
Polyphenylene Sulfide
Specifications Conducting Plate
Brass
Specifications Current Consumption
⤠8 mA
Specifications Direct Current Dc Rated Voltage
24 V | 30 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-15 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Insulation Resistance At 500 Volt V Direct Curren
â¥1,000 MΩ
Specifications List Price
19.95 USD
Specifications Note For Terminal Pitch
Arranging over 2 units
Specifications Number Of Relay Points
1-Point
Specifications Operation Indicator
Blue Light Emitting Diode (LED)
Specifications Protection Structure
Ingress Protection (IP) 20 (International Electrotechnical Commission (IEC) Standard)
Specifications Rated Current
3 A
Specifications Rated Frequency
50 Hz | 60 Hz
Specifications Terminal Block Material
Polyamide 66
Specifications Terminal Pitch
9.0 mm
Specifications Terminal Type
Screwless
Specifications Weight
0.2 lb
