-15 to 55°C I/O Terminal Block
-15 to 55°C I/O Terminal Block
SKU:PRO-446fb4
Reliable -15 to 55°C I/O Terminal Block with 4 relays, CE/CULus certified, LED indicator, and high insulation resistance.
Regular price
$71.95
Regular price
Sale price
$71.95
Unit price
per
Initiate Order
-15 to 55°C I/O Terminal Block
$71.95
Quantity: 1
Claim Your Seller Account
-15 to 55°C I/O Terminal Block
$71.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

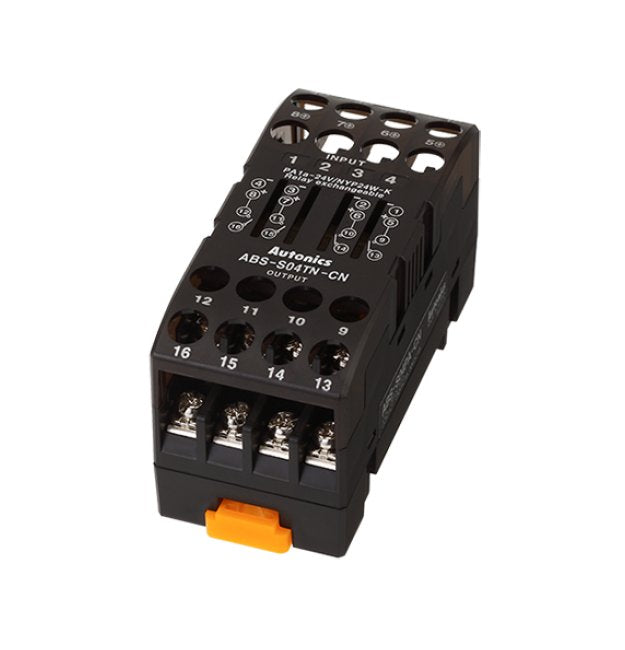

The -15 to 55°C I/O Terminal Block is a high-quality screw type relay terminal block featuring 4 relays with dual voltage support (250VAC 3A, 30VDC 3A). Designed with European Conformity (CE) and cULus certifications, it ensures optimal performance in ambient temperatures ranging from -15 to 55°C. Constructed with durable Modified Polyphenylene Oxide (MPPO) material, this terminal block offers reliable connectivity for a variety of applications. With features like a Blue LED operation indicator and high insulation resistance, it provides a secure and efficient electrical connection.
Product Specifications
Accessories Accessories
Jumper Bar: 2 (Model:JB-7.62-04)
Specifications Alternating Current Ac Dielectric Strength Betwee
750 V
Specifications Alternating Current Ac Rated Voltage
250 V
Specifications Applicable Cable
22-16 AWG | 0.30 to 1.25 mm²
Specifications Applied Relay
NYP24W-K [TAKAMISAWA (Fujitsu)]
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Packaged Weight
107 g
Specifications Approximate Weight
71 g
Specifications Base Material
Modified Polyphenylene Oxide (MPPO)
Specifications Case Material
Modified Polyphenylene Oxide (MPPO)
Specifications Connector Type
Screw
Specifications Current Consumption
⤠8.5 mA
Specifications Direct Current Dc Rated Voltage
24 V | 30 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-15 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Input Direct Current Dc Voltage
12 to 24 V
Specifications Insulation Resistance At 500 Volt V Direct Curren
â¥1,000 MΩ
Specifications List Price
71.95 USD
Specifications Maximum Rated Current
3 A
Specifications Number Of Relay Points
4-Point
Specifications Number Of Terminals
4 Each
Specifications Operation Indicator
Blue Light Emitting Diode (LED)
Specifications Rated Current
3 A
Specifications Relay Type
Takamisawa (Fujitsu) NYP
Specifications Terminal Pin Material
Brass
Specifications Weight
1 lb
