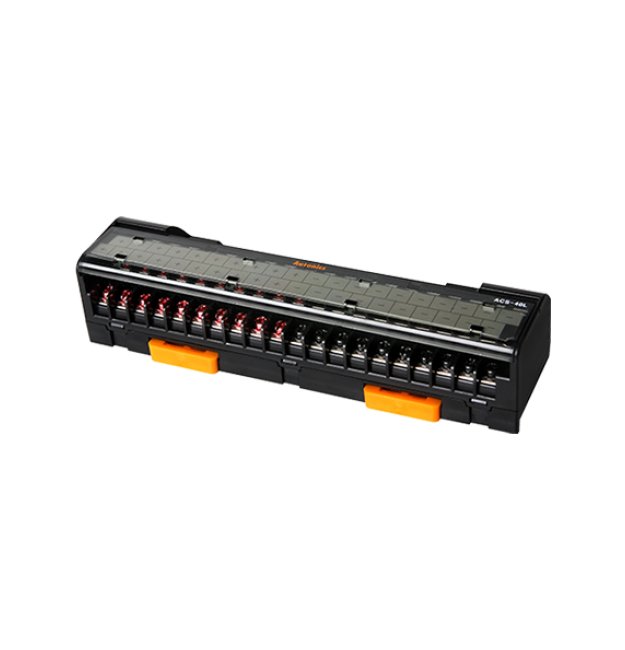

-15 to 55°C I/O Terminal Block
-15 to 55°C I/O Terminal Block
SKU:PRO-1ffa3b
Reliable -15 to 55°C I/O Terminal Block with 40 screw terminals for 125VDC/AC. UL Listed, CE Approved.
Regular price
$29.95
Regular price
Sale price
$29.95
Unit price
per
Initiate Order
-15 to 55°C I/O Terminal Block
$29.95
Quantity: 1
Claim Your Seller Account
-15 to 55°C I/O Terminal Block
$29.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The -15 to 55°C Environment Ambient I/O Terminal Block offers reliable connectivity with 40 screw terminals, designed for 125VDC/AC applications. Made of durable MPPO material with brass terminal pins, it ensures a secure connection. With UL Listed and CE approvals, it meets stringent quality standards. This terminal block accommodates cables of 22-16 AWG, making it ideal for a wide range of applications.
Product Specifications
Specifications Alternating Current Ac Dielectric Strength At 506
600 V
Specifications Applicable Cable
22-16 AWG | 0.30 to 1.25 mm²
Specifications Approval
European Conformity (CE) | Underwriter Laboratories (UL) Listed
Specifications Approximate Packaged Weight
157 g
Specifications Approximate Weight
115 g
Specifications Case Material
Modified Polyphenylene Oxide (MPPO)
Specifications Common Type
Screw (Top+COM, Bottom-COM)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-15 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Insulation Resistance At 500 Volt V Direct Curren
â¥1,000 MΩ
Specifications List Price
29.95 USD
Specifications Maximum Alternating Current Ac Rated Voltage
125 V
Specifications Maximum Direct Current Dc Rated Voltage
125
Specifications Maximum Rated Current
10 A
Specifications Number Of Terminals
40 Each
Specifications Rated Frequency
50 Hz | 60 Hz
Specifications Terminal Pin Material
Brass
Specifications Terminal Pitch
7.0 mm
Specifications Terminal Type
Screw
Specifications Weight
1 lb
