-15 to 55°C I/O Terminal Block
-15 to 55°C I/O Terminal Block
SKU:PRO-7e1f9e
Reliable -15 to 55°C I/O Terminal Block for secure relay connections in diverse environments. NPN/PNP input, 3A current, and IP20, CE, cULus certified.
Regular price
$81.95
Regular price
Sale price
$81.95
Unit price
per
Initiate Order
-15 to 55°C I/O Terminal Block
$81.95
Quantity: 1
Claim Your Seller Account
-15 to 55°C I/O Terminal Block
$81.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

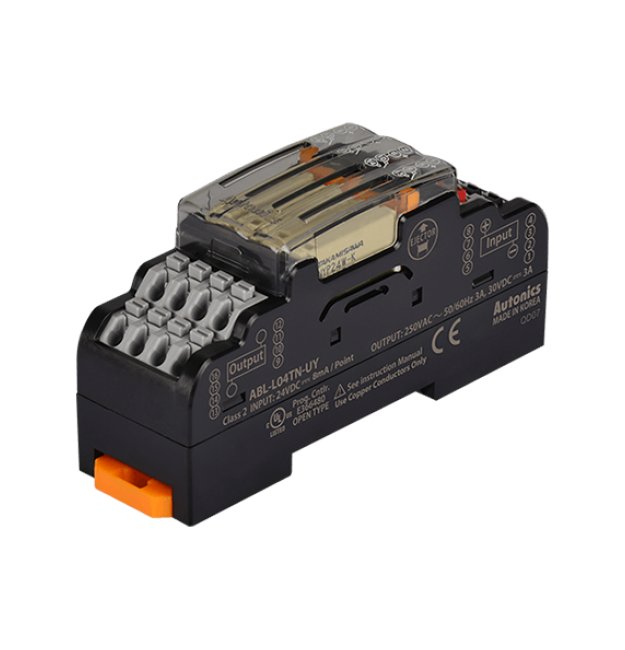

The -15 to 55°C I/O Terminal Block is a reliable solution for relay connections in various environments. With a sturdy construction of Polyphenylene Sulfide and Polyamide 66 materials, this terminal block ensures secure connectivity. It features NPN or PNP input compatibility, a blue LED indicator for operation status, and a rated current of 3A. Meeting IP20 standards, CE approval, and cULus listing, it guarantees safety and performance. The terminal block is designed for easy installation with screwless terminals and supports solid and stranded wire connections.
Product Specifications
Accessories Accessories
Jumper Bar: 1
Specifications 24 Volt V Direct Current Dc Rated Voltage Toleran
±10 %
Specifications Alternating Current Ac Dielectric Strength Betwee
750 V
Specifications Alternating Current Ac Rated Voltage
250 V
Specifications Applicable Cable Diameter Solid Wire 60 Degree Ce
0.6 to 1.25 mm
Specifications Applicable Cable Stranded Wire 60 Degree Celsius
22-16 AWG
Specifications Applied Relay
NYP24W-K [TAKAMISAWA (Fujitsu)]
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Packaged Weight
128 g
Specifications Approximate Weight
75 g
Specifications Base Material
Polyphenylene Sulfide
Specifications Case Material
Polyphenylene Sulfide
Specifications Conducting Plate
Brass
Specifications Current Consumption
⤠8 mA
Specifications Direct Current Dc Rated Voltage
24 V | 30 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-15 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Insulation Resistance At 500 Volt V Direct Curren
â¥1,000 MΩ
Specifications List Price
81.95 USD
Specifications Number Of Relay Points
4-Point
Specifications Operation Indicator
Blue Light Emitting Diode (LED)
Specifications Protection Structure
Ingress Protection (IP) 20 (International Electrotechnical Commission (IEC) Standard)
Specifications Rated Current
3 A
Specifications Rated Frequency
50 Hz | 60 Hz
Specifications Terminal Block Material
Polyamide 66
Specifications Terminal Pitch
5.0 mm
Specifications Terminal Type
Screwless
Specifications Weight
0.2 lb
