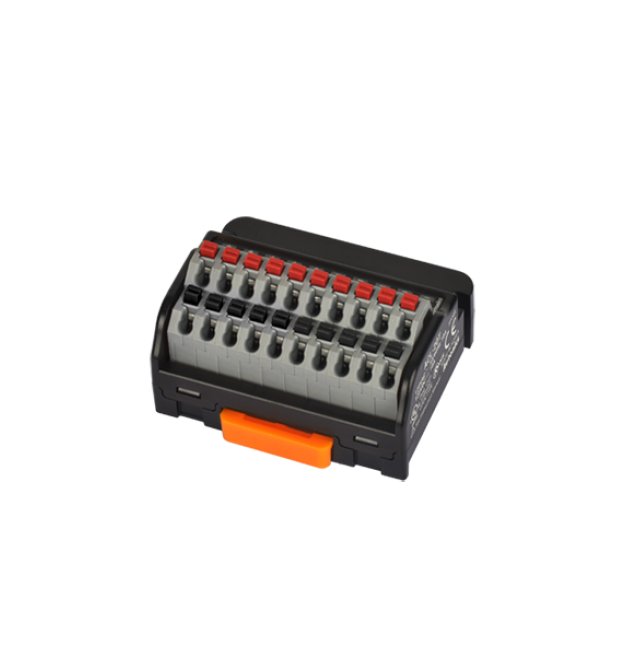

-15 to 55°C I/O Terminal Block
-15 to 55°C I/O Terminal Block
SKU:PRO-d159b7
Reliable -15 to 55°C I/O Terminal Block with 20 screwless terminals, ideal for industrial applications.
Regular price
$26.95
Regular price
Sale price
$26.95
Unit price
per
Initiate Order
-15 to 55°C I/O Terminal Block
$26.95
Quantity: 1
Claim Your Seller Account
-15 to 55°C I/O Terminal Block
$26.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The -15 to 55°C I/O Terminal Block is a durable screwless type terminal block designed for industrial applications. With 20 terminals featuring Up-Down COM configuration, it supports a maximum rated current of 10A at voltages up to 250VDC/VAC 50/60Hz. Constructed with Polyamide 66, Tin Plated Copper, and Polycarbonate materials, this terminal block ensures reliable performance in environments with ambient temperatures ranging from -15 to 55°C. It meets European Conformity (CE), cULus, and UL standards, making it a compliant and dependable choice for institutional and government procurement needs.
Product Specifications
Specifications Alternating Current Ac Dielectric Strength At 506
3,000 V
Specifications Alternating Current Ac Rated Voltage
â¤250 V
Specifications Applicable Cable Diameter Solid Wire 60 Degree Ce
0.6 to 1.25 mm
Specifications Applicable Cable Stranded Wire 60 Degree Celsius
22-16 AWG
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Packaged Weight
71 g
Specifications Approximate Weight
42 g
Specifications Base Material
Polycarbonate
Specifications Case Material
Polycarbonate (PC)
Specifications Common Type
Up +COM, Down -COM
Specifications Conducting Plate
Tin Plated Copper
Specifications Direct Current Dc Rated Voltage
â¤250 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-15 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Insulation Resistance At 500 Volt V Direct Curren
â¥1,000 MΩ
Specifications List Price
26.95 USD
Specifications Maximum Rated Current
10 A
Specifications Number Of Terminals
20 Each
Specifications Rated Frequency
50 Hz | 60 Hz
Specifications Stripped Wire Length
8 to 10 mm
Specifications Terminal Material
Polyamide 66
Specifications Terminal Pitch
5.0 mm
Specifications Terminal Type
Screwless
Specifications Weight
0.2 lb
