-15 to 55°C I/O Terminal Block
-15 to 55°C I/O Terminal Block
SKU:PRO-6b2dad
Reliable -15 to 55°C I/O Terminal Block with 20 screw terminals, 125VDC/AC, CE and UL compliant. Ideal for secure connections in diverse conditions.
Regular price
$16.95
Regular price
Sale price
$16.95
Unit price
per
Initiate Order
-15 to 55°C I/O Terminal Block
$16.95
Quantity: 1
Claim Your Seller Account
-15 to 55°C I/O Terminal Block
$16.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

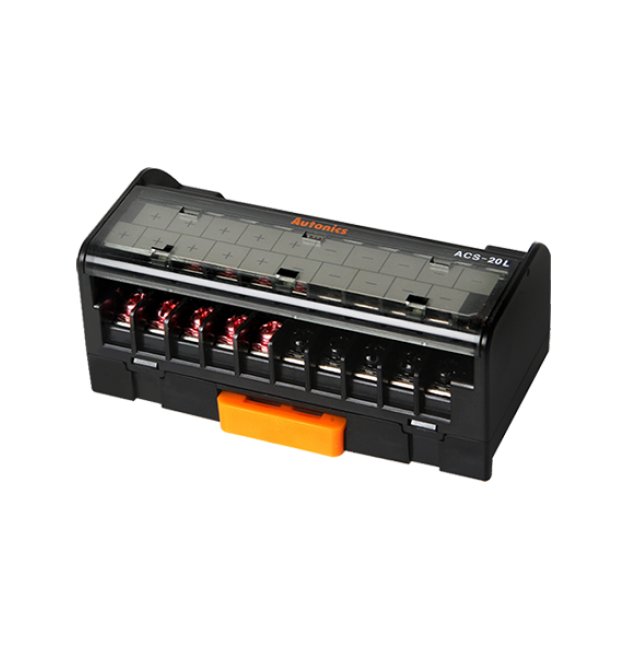

The -15 to 55°C Environment Ambient Temperature Input/Output (I/O) Terminal Block is a versatile solution designed for reliable connectivity in a wide range of environmental conditions. With 20 screw terminals featuring left+COM and right-COM configurations, rated at 125VDC/AC, this terminal block ensures secure connections with a terminal pitch of 7mm. Constructed with durable Modified Polyphenylene Oxide (MPPO) material and brass terminal pins, it meets stringent European Conformity (CE) and Underwriter Laboratories (UL) standards, making it ideal for various applications while maintaining excellent insulation resistance and dielectric strength. Compatible with 22-16 AWG cables, this terminal block is a dependable choice for your connectivity needs.
Product Specifications
Specifications Alternating Current Ac Dielectric Strength At 506
600 V
Specifications Applicable Cable
22-16 AWG | 0.30 to 1.25 mm²
Specifications Approval
European Conformity (CE) | Underwriter Laboratories (UL) Listed
Specifications Approximate Packaged Weight
92 g
Specifications Approximate Weight
61 g
Specifications Case Material
Modified Polyphenylene Oxide (MPPO)
Specifications Common Type
Screw (Left+COM, Right-COM)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-15 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Insulation Resistance At 500 Volt V Direct Curren
â¥1,000 MΩ
Specifications List Price
16.95 USD
Specifications Maximum Alternating Current Ac Rated Voltage
125 V
Specifications Maximum Direct Current Dc Rated Voltage
125
Specifications Maximum Rated Current
10 A
Specifications Number Of Terminals
20 Each
Specifications Rated Frequency
50 Hz | 60 Hz
Specifications Terminal Pin Material
Brass
Specifications Terminal Pitch
7.0 mm
Specifications Terminal Type
Screw
Specifications Weight
1 lb
