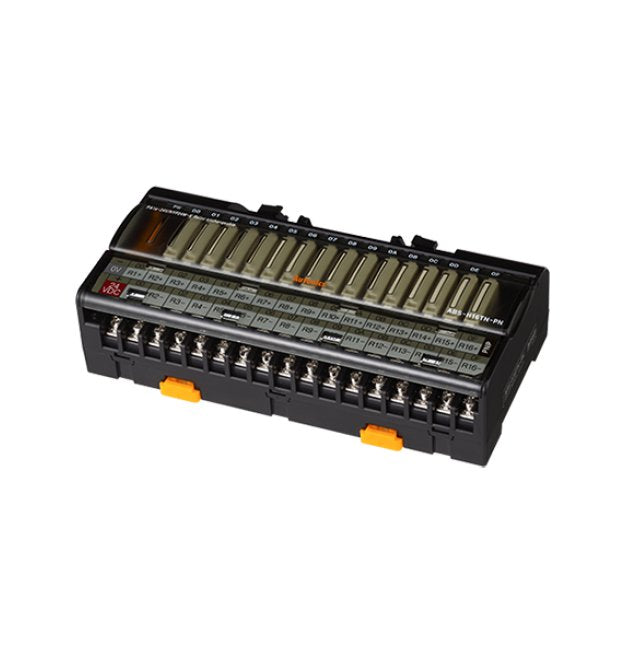

-15 to 55°C I/O Terminal Block
-15 to 55°C I/O Terminal Block
SKU:PRO-0cf01b
Reliable -15 to 55°C I/O Terminal Block with 16 relay points, Hirose connector, and LED indicators for efficient performance in varied environments.
Regular price
$315.95
Regular price
Sale price
$315.95
Unit price
per
Initiate Order
-15 to 55°C I/O Terminal Block
$315.95
Quantity: 1
Claim Your Seller Account
-15 to 55°C I/O Terminal Block
$315.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The -15 to 55°C I/O Terminal Block is a reliable solution for environmental input/output connectivity needs. It features a durable design with Polyamide and MPPO materials, suitable for temperatures ranging from -15 to 55°C. With 16 relay points (250VAC 3A, 30VDC 3A), Hirose connector, and LED indicators, this terminal block ensures efficient performance. It meets European Conformity (CE) and cULus standards, offering high insulation resistance, NPN logic, and dielectric strength up to 3000V AC.
Product Specifications
Accessories Accessories
Jumper Bar: 2 (Model:JB-7.62-08)
Specifications Alternating Current Ac Dielectric Strength Betwee
750 V
Specifications Alternating Current Ac Rated Voltage
250 V
Specifications Applicable Cable
22-16 AWG | 0.30 to 1.25 mm²
Specifications Applied Relay
NYP24W-K [TAKAMISAWA (Fujitsu)]
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Packaged Weight
318 g
Specifications Approximate Weight
235 g
Specifications Body Material
Polyamide 66 (G25%)
Specifications Case Material
Modified Polyphenylene Oxide (MPPO)
Specifications Connector Type
Hirose Connector
Specifications Current Consumption
⤠13.5 mA | ⤠8.5 mA
Specifications Direct Current Dc Rated Voltage
24 V | 30 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-15 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Input Direct Current Dc Voltage
12 to 24 V
Specifications Input Logic
Negative-Positive-Negative (NPN)
Specifications Insulation Resistance At 500 Volt V Direct Curren
â¥1,000 MΩ
Specifications List Price
315.95 USD
Specifications Maximum Rated Current
3 A
Specifications Number Of Connector Pins
20
Specifications Number Of Relay Points
16-Point
Specifications Number Of Terminals
16 Each
Specifications Operation And Disconnection Indicator
Blue Light Emitting Diode (LED)
Specifications Power Indicator
Red Light Emitting Diode (LED)
Specifications Rated Current
3 A
Specifications Relay Type
Takamisawa (Fujitsu) NYP
Specifications Terminal Pin Material
Brass
Specifications Weight
1 lb
