-15 to 55°C I/O Terminal Block
-15 to 55°C I/O Terminal Block
SKU:PRO-2f5767

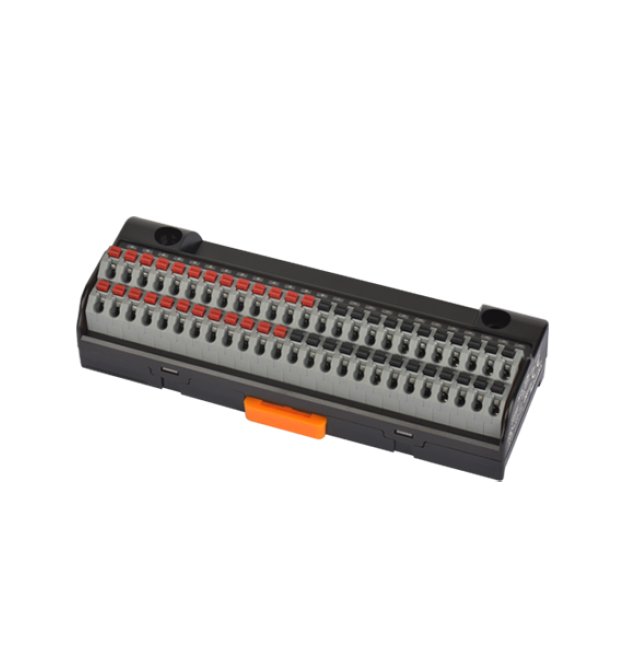

Reliable -15 to 55°C I/O Terminal Block with 50 screwless terminals, Tin Plated Copper conducting plate & CE/cULus approvals.
Regular price
$62.95
Regular price
Sale price
$62.95
Unit price
per
Initiate Order
-15 to 55°C I/O Terminal Block
$62.95
Quantity: 1
Claim Your Seller Account
-15 to 55°C I/O Terminal Block
$62.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The -15 to 55°C Environment Ambient Temperature Input/Output (I/O) Terminal Block offers a reliable solution for connectivity. With 50 screwless terminals, Tin Plated Copper conducting plate, and approvals including European Conformity (CE) and cULus Listing, this terminal block ensures secure connections in environments with varying temperatures. The polycarbonate construction and 10A maximum rated current make it a durable and efficient choice for industrial applications.
Product Specifications
Specifications Alternating Current Ac Dielectric Strength At 506
3,000 V
Specifications Alternating Current Ac Rated Voltage
â¤250 V
Specifications Applicable Cable Diameter Solid Wire 60 Degree Ce
0.6 to 1.25 mm
Specifications Applicable Cable Stranded Wire 60 Degree Celsius
22-16 AWG
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Packaged Weight
164 g
Specifications Approximate Weight
97 g
Specifications Base Material
Polycarbonate
Specifications Case Material
Polycarbonate (PC)
Specifications Common Type
Left+COM, Right-COM
Specifications Conducting Plate
Tin Plated Copper
Specifications Direct Current Dc Rated Voltage
â¤250 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-15 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Insulation Resistance At 500 Volt V Direct Curren
â¥1,000 MΩ
Specifications List Price
62.95 USD
Specifications Maximum Rated Current
10 A
Specifications Number Of Terminals
50 Each
Specifications Rated Frequency
50 Hz | 60 Hz
Specifications Stripped Wire Length
8 to 10 mm
Specifications Terminal Material
Polyamide 66
Specifications Terminal Pitch
5.0 mm
Specifications Terminal Type
Screwless
Specifications Weight
0.2 lb
