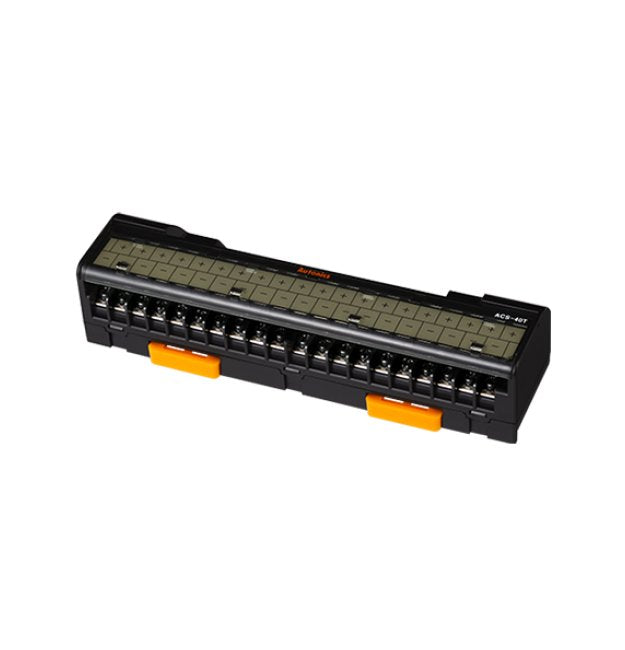

-15 to 55 Degree Celcius Environment I/O Terminal Block
-15 to 55 Degree Celcius Environment I/O Terminal Block
SKU:PRO-69e650
Reliable -15 to 55℃ I/O Terminal Block with 40 screw terminals for secure connectivity in industrial environments
Regular price
$29.95
Regular price
Sale price
$29.95
Unit price
per
Initiate Order
-15 to 55 Degree Celcius Environment I/O Terminal Block
$29.95
Quantity: 1
Claim Your Seller Account
-15 to 55 Degree Celcius Environment I/O Terminal Block
$29.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The -15 to 55 Degree Celcius Environment I/O Terminal Block is designed for reliable connectivity in challenging temperature conditions. With 40 screw terminals, top+COM and bottom-COM configuration, it offers a secure and efficient wiring solution. This terminal block is UL Listed and CE approved, ensuring adherence to stringent safety standards. Constructed with Modified Polyphenylene Oxide (MPPO) and brass terminal pins, it ensures durability and high performance even in industrial settings. Suitable for 22-16 AWG cables, with a maximum current rating of 10A and a dielectric strength of 600V, this terminal block is ideal for various applications.
Product Specifications
Specifications Alternating Current Ac Dielectric Strength At 506
600 V
Specifications Applicable Cable
22-16 AWG | 0.30 to 1.25 mm²
Specifications Approval
European Conformity (CE) | Underwriter Laboratories (UL) Listed
Specifications Approximate Packaged Weight
157 g
Specifications Approximate Weight
115 g
Specifications Case Material
Modified Polyphenylene Oxide (MPPO)
Specifications Common Type
Screw (Left+COM, Right-COM)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-15 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Insulation Resistance At 500 Volt V Direct Curren
â¥1,000 MΩ
Specifications List Price
29.95 USD
Specifications Maximum Alternating Current Ac Rated Voltage
125 V
Specifications Maximum Direct Current Dc Rated Voltage
125
Specifications Maximum Rated Current
10 A
Specifications Number Of Terminals
40 Each
Specifications Rated Frequency
50 Hz | 60 Hz
Specifications Terminal Pin Material
Brass
Specifications Terminal Pitch
7.0 mm
Specifications Terminal Type
Screw
Specifications Weight
1 lb
