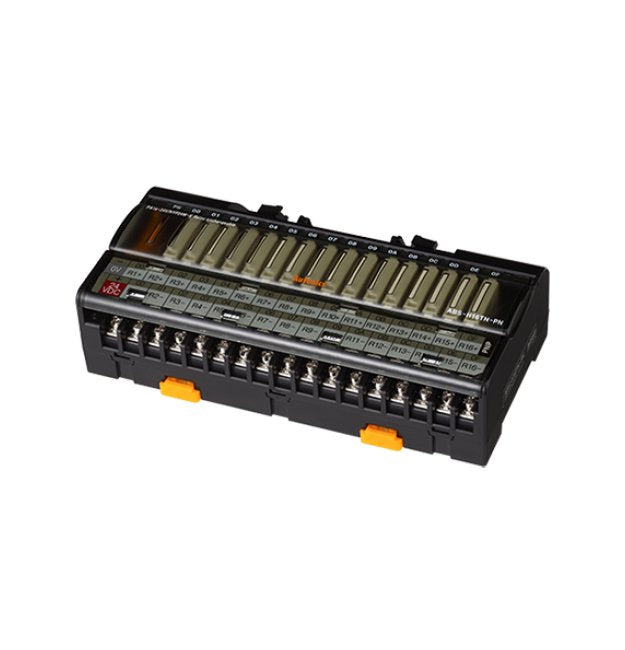

-15 to 55℃ I/O Terminal Block
-15 to 55℃ I/O Terminal Block
SKU:PRO-81fdf7
Efficient -15 to 55℃ I/O Terminal Block for reliable relay applications, 3A capacity, LED indicators, and durable construction.
Regular price
$315.95
Regular price
Sale price
$315.95
Unit price
per
Initiate Order
-15 to 55℃ I/O Terminal Block
$315.95
Quantity: 1
Claim Your Seller Account
-15 to 55℃ I/O Terminal Block
$315.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The -15 to 55℃ I/O Terminal Block is a reliable solution for relay applications, featuring 16 relays with 3A capacity, a Hirose connector, and LED indicators for power and operation status. Constructed with durable materials including Polyamide 66 and Brass, this terminal block is designed to withstand ambient temperatures ranging from -15 to 55℃, meeting European Conformity and cULus Listed standards. Compatible with 22-16 AWG cables, this terminal block offers a secure and efficient connectivity solution for various environments.
Product Specifications
Accessories Accessories
Jumper Bar: 2 (Model:JB-7.62-08)
Specifications Alternating Current Ac Dielectric Strength Betwee
750 V
Specifications Alternating Current Ac Rated Voltage
250 V
Specifications Applicable Cable
22-16 AWG | 0.30 to 1.25 mm²
Specifications Applied Relay
NYP24W-K [TAKAMISAWA (Fujitsu)]
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Packaged Weight
318 g
Specifications Approximate Weight
235 g
Specifications Body Material
Polyamide 66 (G25%)
Specifications Case Material
Modified Polyphenylene Oxide (MPPO)
Specifications Connector Type
Hirose Connector
Specifications Current Consumption
⤠13.5 mA | ⤠8.5 mA
Specifications Direct Current Dc Rated Voltage
24 V | 30 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-15 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Input Direct Current Dc Voltage
12 to 24 V
Specifications Input Logic
Positive-Negative-Positive (PNP)
Specifications Insulation Resistance At 500 Volt V Direct Curren
â¥1,000 MΩ
Specifications List Price
315.95 USD
Specifications Maximum Rated Current
3 A
Specifications Number Of Connector Pins
20
Specifications Number Of Relay Points
16-Point
Specifications Number Of Terminals
16 Each
Specifications Operation And Disconnection Indicator
Blue Light Emitting Diode (LED)
Specifications Power Indicator
Red Light Emitting Diode (LED)
Specifications Rated Current
3 A
Specifications Relay Type
Takamisawa (Fujitsu) NYP
Specifications Terminal Pin Material
Brass
Specifications Weight
1 lb
