150# Cast Steel Angle Storm Valve (A3060)
150# Cast Steel Angle Storm Valve (A3060)
SKU:VAL-de4c68
Durable 150# Cast Steel Angle Storm Valve for reliable fluid control in industrial applications.
Regular price
$749.99
Regular price
Sale price
$749.99
Unit price
per
Initiate Order
150# Cast Steel Angle Storm Valve (A3060)
$749.99
Quantity: 1
Claim Your Seller Account
150# Cast Steel Angle Storm Valve (A3060)
$749.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

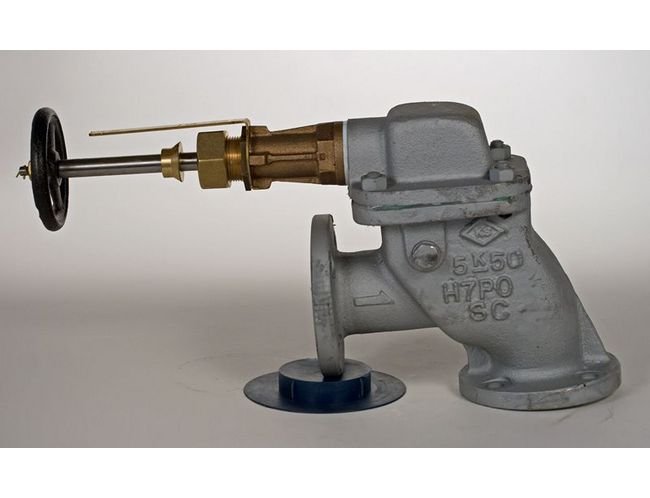

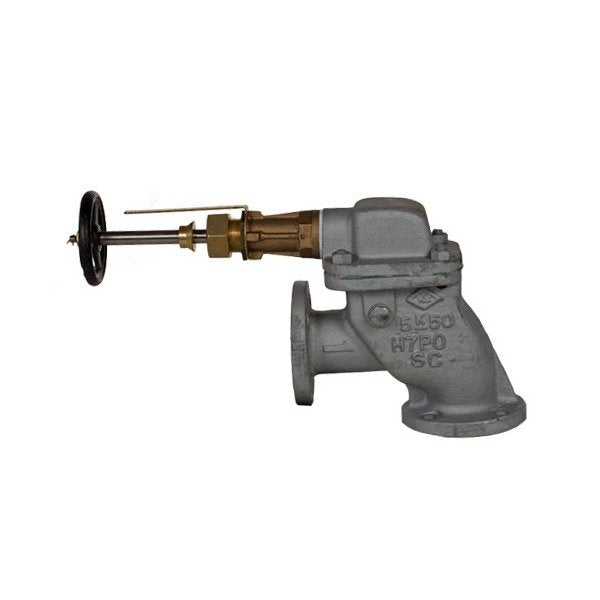

The 150# Cast Steel Angle Storm Valve (A3060) is a robust valve designed for demanding applications. Constructed with high-quality materials including Cast Steel body, Rubber seat, Bronze disc, and Stainless Steel stem, this valve ensures durability and reliable performance under varying pressures. With a size of 150 and a test pressure of 5.1 kgf/cm², it meets stringent industry standards, making it ideal for industrial, commercial, and institutional use. Trust this valve for efficient fluid control and secure operations.

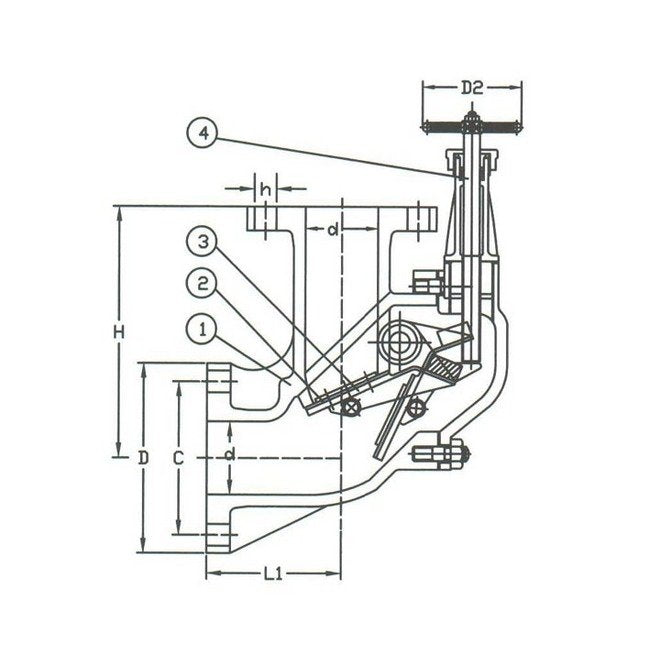

Product Specifications
Specifications Body Material
Cast Steel
Specifications C
241.3 mm | 9.500 in
Specifications D
280 mm | 11.024 in
Specifications Disc Material
Bronze
Specifications H
310 mm | 12.205 in
Specifications H1
310 mm
Specifications Number Of Holes
8
Specifications Seat Material
Rubber
Specifications Size
150
Specifications Stem Material
Stainless Steel
Specifications T
25.4 mm
Specifications Test Pressure
5.1 kgf/cm²
Specifications Weight
73.7 kg
