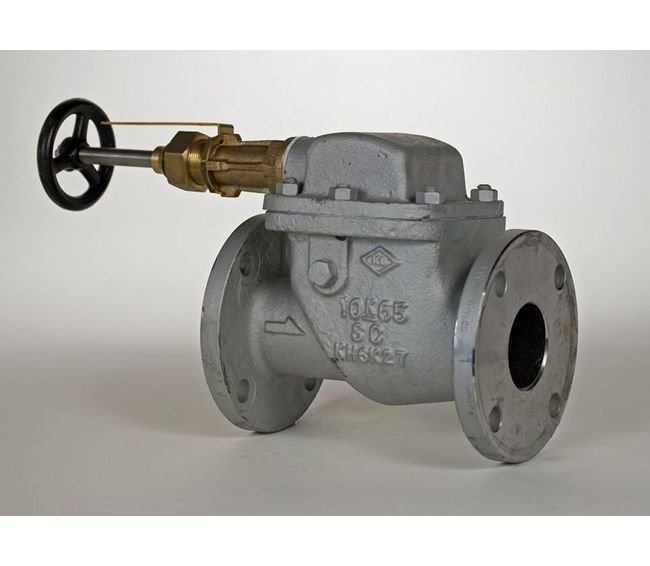

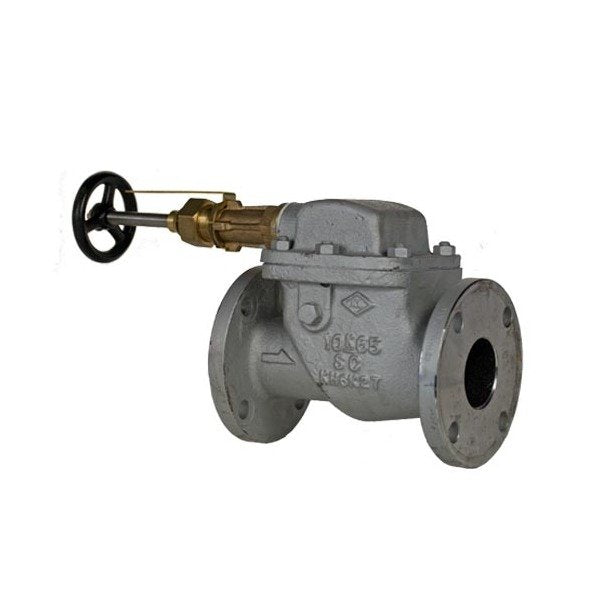

150# Cast Steel Vertical Storm Valve A3059
150# Cast Steel Vertical Storm Valve A3059
SKU:VAL-57a555
Durable 150# Cast Steel Storm Valve for industrial fluid control. ANSI compliant with superior materials for longevity.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
150# Cast Steel Vertical Storm Valve A3059
$289.99
Quantity: 1
Claim Your Seller Account
150# Cast Steel Vertical Storm Valve A3059
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 150# A3059 Cast Steel Vertical Storm Valve is a durable and reliable solution for fluid control in demanding environments. Constructed with high-quality materials including Cast Steel body, Rubber seat, Bronze disc, and Stainless Steel stem, this valve ensures long-term performance and corrosion resistance. With specifications meeting rigorous standards, such as a test pressure of 5.1 kgf/cm² and precise dimensions, this valve is ideal for industrial applications requiring ANSI compliance.

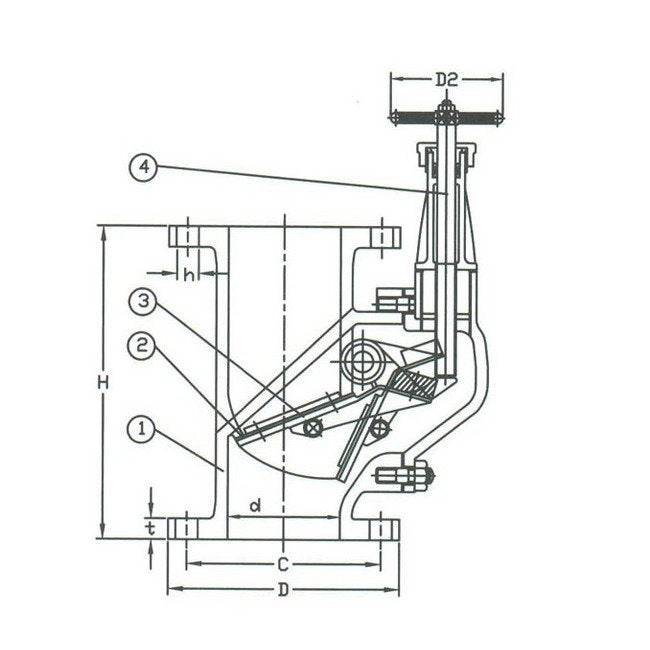

Product Specifications
Specifications Body Material
Cast Steel
Specifications C
152.4 mm | 6.0 in
Specifications D
190 mm | 7.480 in
Specifications Disc Material
Bronze
Specifications H
260 mm | 10.236 in
Specifications H1
313 mm
Specifications Number Of Holes
4
Specifications Seat Material
Rubber
Specifications Size
080
Specifications Stem Material
Stainless Steel
Specifications T
23.9 mm
Specifications Test Pressure
5.1 kgf/cm²
Specifications Weight
18.5 kg
