150# Cast Steel Vertical Storm Valve - A3059

Name: 150# Cast Steel Vertical Storm Valve - A3059
Brand: World Wide Metric, Inc.
SKU: VAL-d5332e
Price: 399.99 USD
Availability: OutOfStock

SKU:VAL-d5332e

Durable 150# Cast Steel Storm Valve, ANSI standard compliant, ensures reliability & efficiency in industrial settings.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

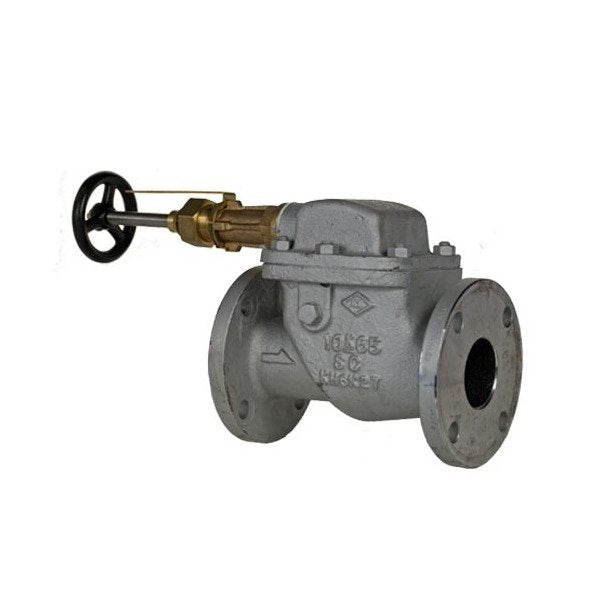

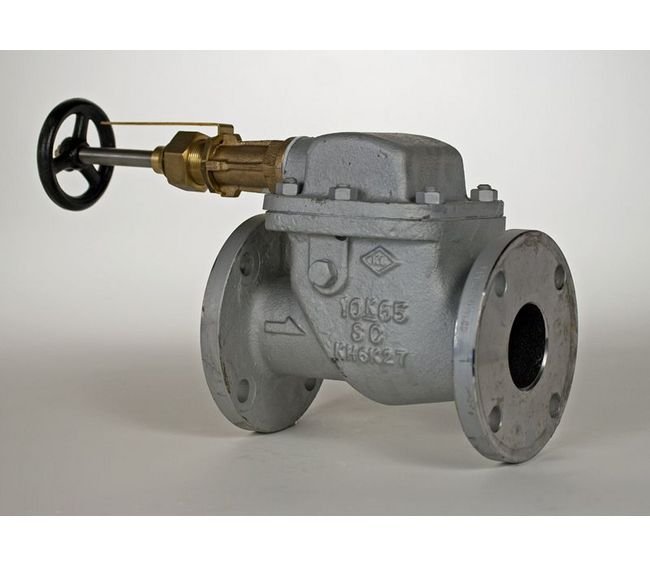

The A3059 150# Cast Steel Vertical Storm Valve is a robust solution designed for industrial applications. Constructed with high-quality materials including Cast Steel body, Rubber seat, Bronze disc, and Stainless Steel stem, this valve ensures durability and efficient performance. With a size of 150, test pressure of 5.1 kgf/cm², and precise dimensions, this valve meets ANSI standards for reliability and safety. Suitable for a range of settings, it offers ease of installation and maintenance, making it a cost-effective choice for institutional buyers.

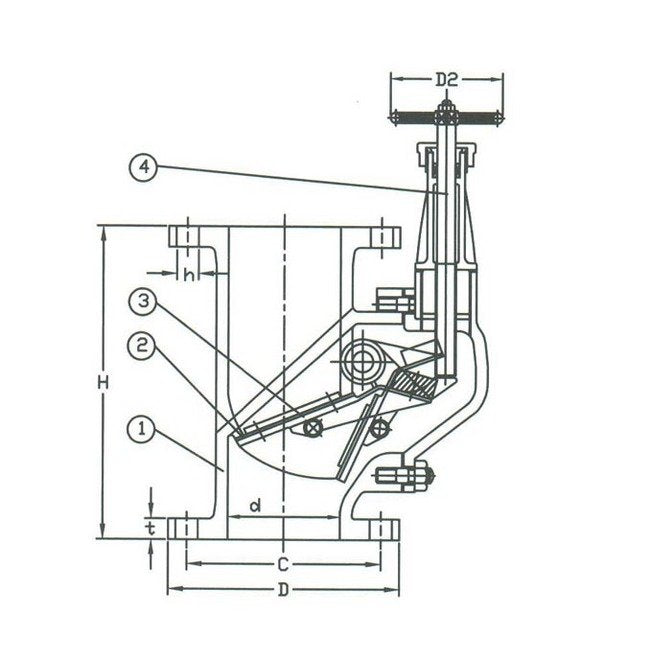

Product Specifications

Specifications Body Material

Cast Steel

Specifications C

241.3 mm | 9.500 in

Specifications D

280 mm | 11.024 in

Specifications Disc Material

Bronze

Specifications H

360 mm | 14.173 in

Specifications H1

310 mm

Specifications Number Of Holes

Specifications Seat Material

Rubber

Specifications Size

150

Specifications Stem Material

Stainless Steel

Specifications T

25.4 mm

Specifications Test Pressure

5.1 kgf/cmÂ²

Specifications Weight

55.0 kg
