150# Cast Steel Vertical Storm Valve - ANSI Certified
150# Cast Steel Vertical Storm Valve - ANSI Certified
SKU:VAL-efe7b8
High-performance 150# Cast Steel Vertical Storm Valve with ANSI certification for industrial fluid control.
Regular price
$369.99
Regular price
Sale price
$369.99
Unit price
per
Initiate Order
150# Cast Steel Vertical Storm Valve - ANSI Certified
$369.99
Quantity: 1
Claim Your Seller Account
150# Cast Steel Vertical Storm Valve - ANSI Certified
$369.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

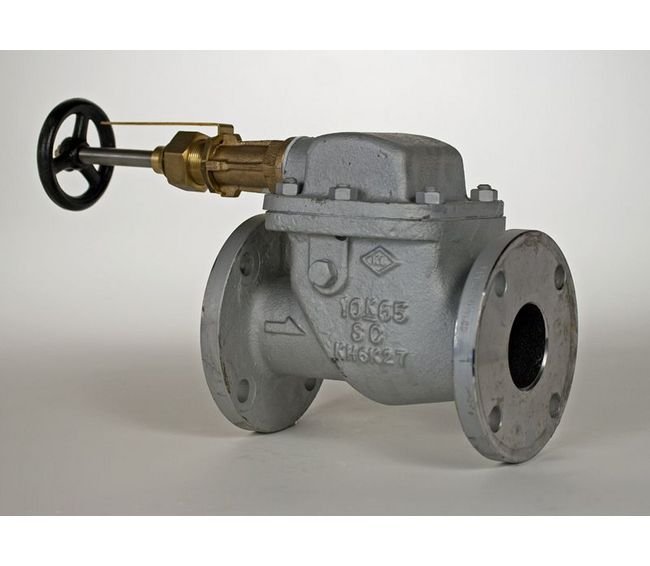

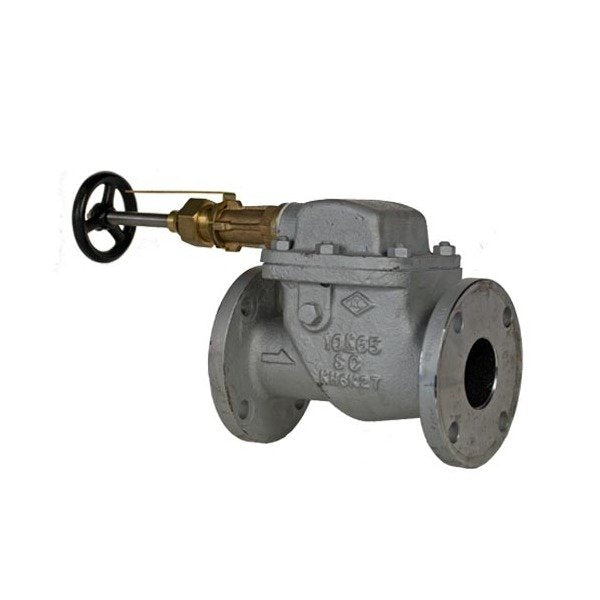

The A3059 150# Cast Steel Vertical Storm Valve is engineered for high-performance in demanding industrial environments. Crafted from durable cast steel with a bronze disc and stainless steel stem, it ensures reliable operation and longevity. The rubber seat provides a tight seal, enhancing efficiency and preventing leaks. With a test pressure of 5.1 kgf/cm² and meeting ANSI standards, this valve offers exceptional safety and performance for fluid control applications.

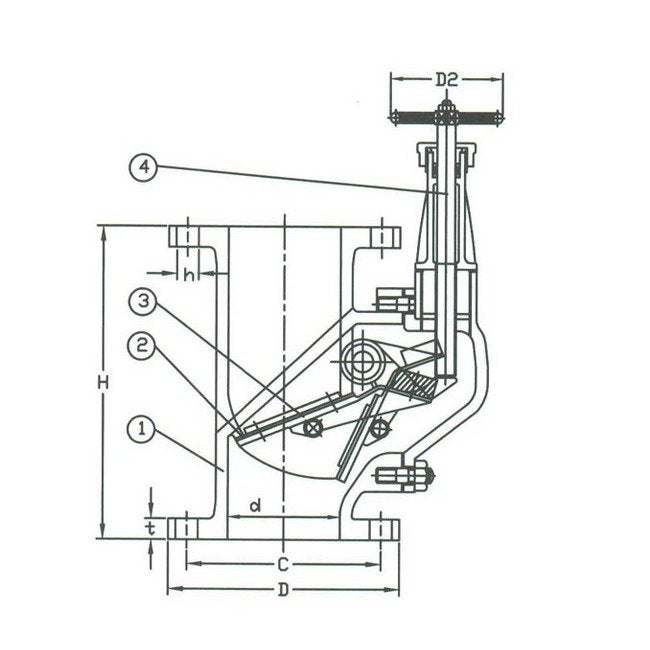

Product Specifications
Specifications Body Material
Cast Steel
Specifications C
298.5 mm | 11.752 in
Specifications D
345 mm | 13.583 in
Specifications Disc Material
Bronze
Specifications H
450 mm | 17.717 in
Specifications H1
310 mm
Specifications Number Of Holes
8
Specifications Seat Material
Rubber
Specifications Size
200
Specifications Stem Material
Stainless Steel
Specifications T
28.6 mm
Specifications Test Pressure
5.1 kgf/cm²
Specifications Weight
87.5 kg
