150 MHz TCXO Temperature-Compensated Crystal Oscillator
150 MHz TCXO Temperature-Compensated Crystal Oscillator
SKU:TCX-c81dea
Reliable 150 MHz TCXO oscillator with low phase noise, compact design, and robust construction for high-performance applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
150 MHz TCXO Temperature-Compensated Crystal Oscillator
$129.99
Quantity: 1
Claim Your Seller Account
150 MHz TCXO Temperature-Compensated Crystal Oscillator
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 150 MHz TCXO from Greenray Industries offers exceptional phase noise performance and reliable frequency stability over a wide temperature range. With a compact 14.2 x 9.1 mm package, this oscillator provides low phase noise at various frequency offsets, making it ideal for telecommunications, high-shock electronics, and airborne communications applications. Designed to withstand vibrations and shocks, it features LVPECL output and operates on a 3.3 V DC supply voltage. This TCXO meets stringent MIL-STD-202 standards for vibration and shock resistance, ensuring durability in demanding environments.
Product Specifications
Applications Applications
TelecommunicationsHigh-shock electronicsMobile radioMobile instrumentationAirborne communicationsWireless communicationsMicrowave receivers
Benefits Benefits
Low phase noise, in a compact, SMT package
Direct Current Dc Supply Direct Current Dc Supply Voltage
3.3 V
Direct Current Dc Supply Maximum Direct Current Dc Supply Voltag
3.6 V
Direct Current Dc Supply Maximum Supply Current
65 mA
Direct Current Dc Supply Minimum Direct Current Dc Supply Voltag
3 V
Direct Current Dc Supply Direct Current Dc Supply Voltag
3.3 V
Electrical Characteristics Maximum Aging Tolerance For 1 Year
1 ppm
Electrical Characteristics Maximum Frequency Versus Load At 10 C
0.1 ppm
Electrical Characteristics Maximum Frequency Versus Voltage At 5
0.3 ppm
Electrical Characteristics Maximum Nominal Frequency At 25 Degre
150 MHz
Electrical Characteristics Maximum Reflow Shift
1 ppm
Electrical Characteristics Maximum Standard Acceleration Sensiti
2.5 ppb/g
Electrical Characteristics Minimum Electronic Frequency Control
5 ppm
Electrical Characteristics Minimum Nominal Frequency At 25 Degre
50 MHz
Electrical Characteristics Risefall Time
1 ns
Electrical Characteristics Frequency Stability At 40 To
1.0 ppm | 2 ppm
Electrical Characteristics Frequency Stability At 55 To
3 ppm
Environmental Shock
Standard MIL-STD-202Method, Condition213, Cond CDescription 100 g, 6 ms, half-sine
Environmental Vibration
Standard MIL-STD-202Method, Condition201 and 204, Cond CDescription10 g, 20 Hz to 2000 Hz, swept sine
Features Features
Robust package withstanding shocks and vibrationsLVPECL output
Phase Noise Performance Low Phase Noise At 10 Kilohertz Khz Offs
-154 dBc/Hz
Phase Noise Performance Phase Noise At 100 Megahertz Mhz
-157 dBc/Hz
Radio Frequency Rf Output Sinewave Maximum Level
+ 0.2 V "1" Level V
Radio Frequency Rf Output Sinewave Maximum Symmetry For Low Volt
60 %
Radio Frequency Rf Output Sinewave Minimum Level
+ 2.8 V "1" Level V
Radio Frequency Rf Output Sinewave Minimum Symmetry For Low Volt
40 %
Radio Frequency Rf Output Sinewave Load For Low Voltage
50 Ohms
Radio Frequency Rf Output Sinewave Symmetry For Low Volt
50 %
Recommendation And General Information Marking
Line 1: Greenray logo Line 2: ModelLine 3: FrequencyLine 4: Serial Number + Data Code (YYWW)
Recommendation And General Information Operating Temperature
-55 to +95 ºC
Recommendation And General Information Package Weight
3 g
Recommendation And General Information Shipping
Tape and Reel | Tray Pack

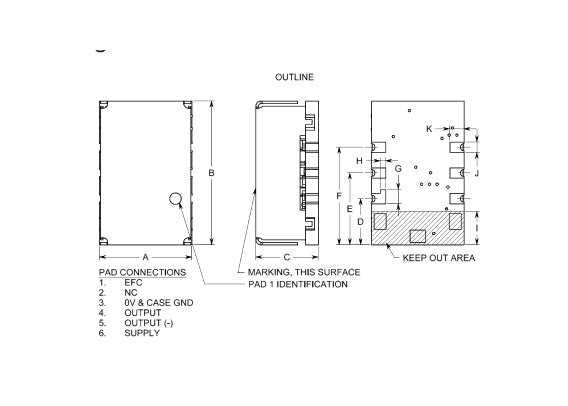

Specifications Sizes Dimensions Details Smt Compact Package
14.2 x 9.1 mm
