150# Vertical Storm Valve, Cast Steel A3059
150# Vertical Storm Valve, Cast Steel A3059
SKU:VAL-d061b2
High-quality 150# Cast Steel Vertical Storm Valve for efficient flow control in stormwater applications.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
150# Vertical Storm Valve, Cast Steel A3059
$399.99
Quantity: 1
Claim Your Seller Account
150# Vertical Storm Valve, Cast Steel A3059
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

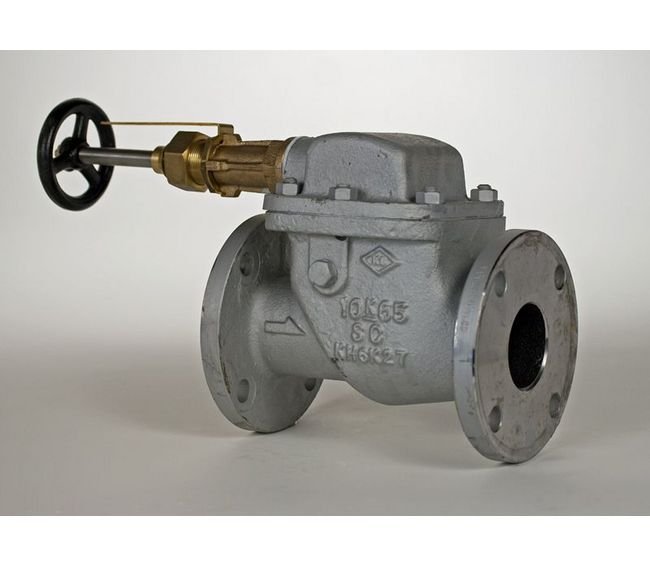

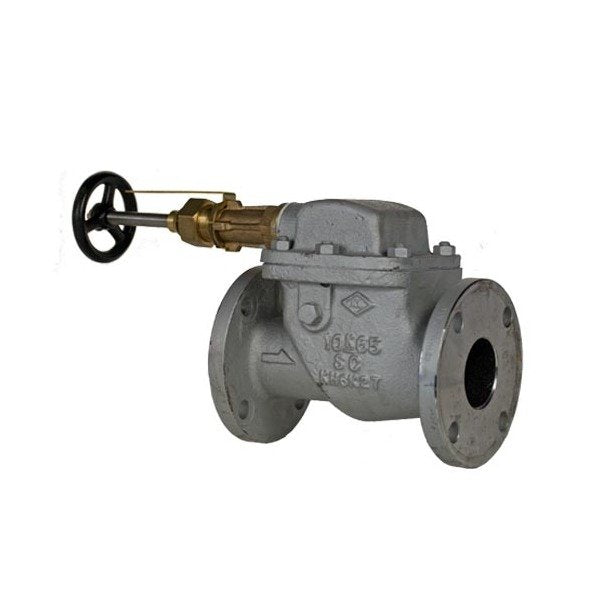

The 150# Cast Steel Vertical Storm Valve, model A3059, is a high-quality valve designed for superior performance in stormwater applications. Constructed with a cast steel body, rubber seat, bronze disc, and stainless steel stem, this valve ensures durability, corrosion resistance, and reliable operation under varied conditions. With a size of 125, test pressure of 5.1 kgf/cm², and precise dimensions meeting industry standards, this valve offers efficiency and longevity. Ideal for ANSI storm valve applications, it guarantees smooth flow control and minimal maintenance requirements, making it a trusted choice for both consumer and institutional buyers.

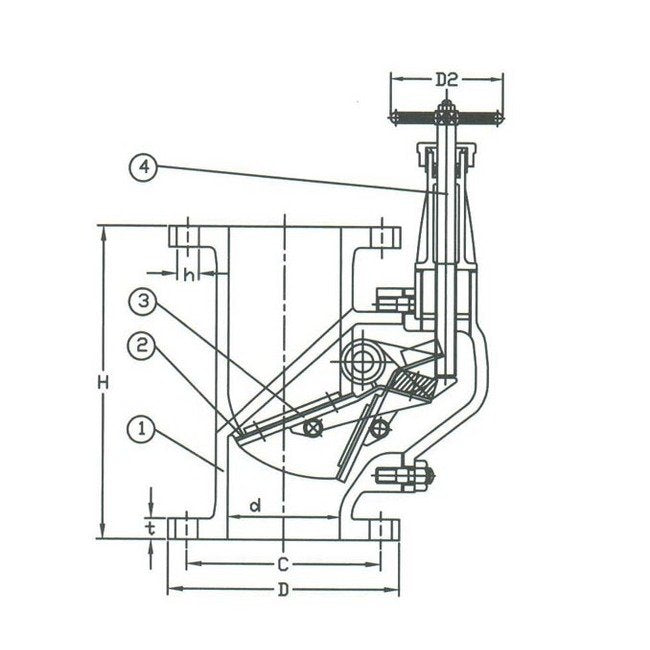

Product Specifications
Specifications Body Material
Cast Steel
Specifications C
515.9 mm | 20.311 in
Specifications D
255 mm | 10.039 in
Specifications Disc Material
Bronze
Specifications H
330 mm | 12.992 in
Specifications H1
318 mm
Specifications Number Of Holes
8
Specifications Seat Material
Rubber
Specifications Size
125
Specifications Stem Material
Stainless Steel
Specifications T
23.9 mm
Specifications Test Pressure
5.1 kgf/cm²
Specifications Weight
36.5 kg
