150# Vertical Storm Valve - Cast Steel A3059
150# Vertical Storm Valve - Cast Steel A3059
SKU:VAL-a99d1e
High-performance 150# Cast Steel Vertical Storm Valve for industrial applications. Durable, reliable, and tested at 5.1 kgf/cm².
Regular price
$239.99
Regular price
Sale price
$239.99
Unit price
per
Initiate Order
150# Vertical Storm Valve - Cast Steel A3059
$239.99
Quantity: 1
Claim Your Seller Account
150# Vertical Storm Valve - Cast Steel A3059
$239.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

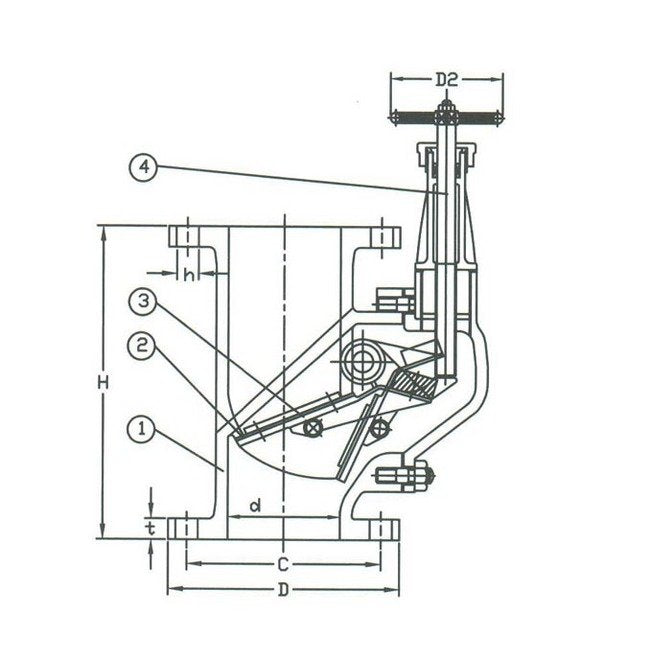

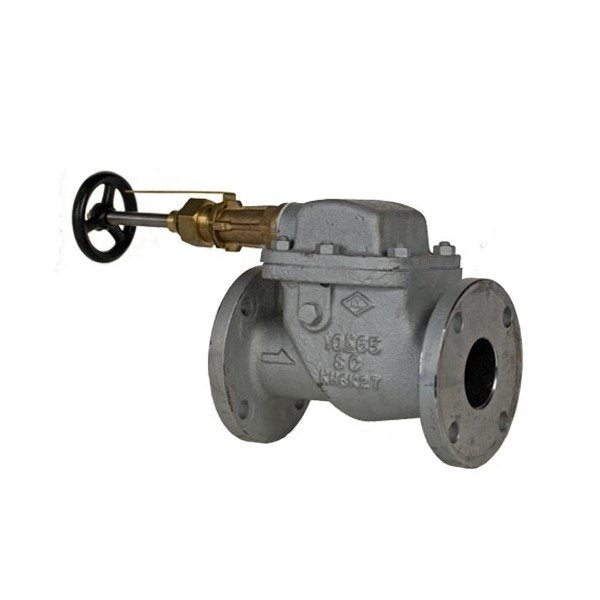

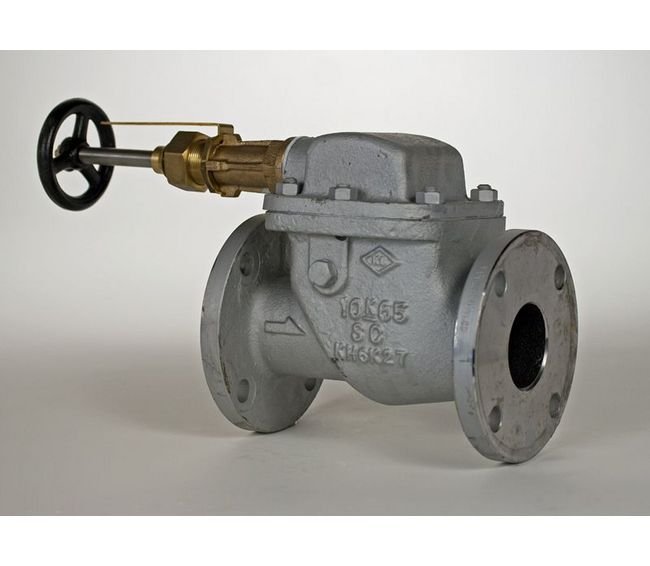

The 150# Cast Steel Vertical Storm Valve (A3059) is a durable solution designed for high-pressure applications. With a body made of SC492 Cast Steel, a Rubber NBR3 seat, Bronze BC64 disc, and Stainless Steel SUS403 stem, this valve ensures reliable performance and longevity. Tested at 5.1 kgf/cm², this valve excels in critical conditions. Its compact design, measuring H: 240mm, D: 180mm, and C: 139.7mm, with 4 holes for secure installation, makes it ideal for industrial settings requiring precision and efficiency.
Product Specifications
Specifications Body Material
Cast Steel
Specifications C
139.7 mm | 5.500 in
Specifications D
180 mm | 7.087 in
Specifications Disc Material
Bronze
Specifications H
240 mm | 9.449 in
Specifications H1
263 mm
Specifications Number Of Holes
4
Specifications Seat Material
Rubber
Specifications Size
065
Specifications Stem Material
Stainless Steel
Specifications T
22.3 mm
Specifications Test Pressure
5.1 kgf/cm²
Specifications Weight
13.7 kg
