150mm PN 16 Cast Steel Swing Check Valve

Name: 150mm PN 16 Cast Steel Swing Check Valve
Brand: World Wide Metric, Inc.
SKU: VAL-ad86b6
Price: 799.99 USD
Availability: OutOfStock

SKU:VAL-ad86b6

Durable 150mm Cast Steel Swing Check Valve compliant with DIN standards for reliable industrial performance.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 150mm PN 16 Cast Steel Swing Check Valve is a durable and reliable valve designed for industrial applications. Constructed with Cast Steel body, Stainless Steel hinge, disc, and seat materials, this valve ensures long-lasting performance. Compliant with DIN standards including DIN 3202-F6 for face to face dimensions and DIN2501-PN16 for flanges, it meets stringent quality requirements. With features like Gravity actuators and precise dimensions, this valve provides efficient hydraulic performance for diverse operational needs.

Product Specifications

Specifications Actuators

Gravity

Specifications Body Material

Cast Steel

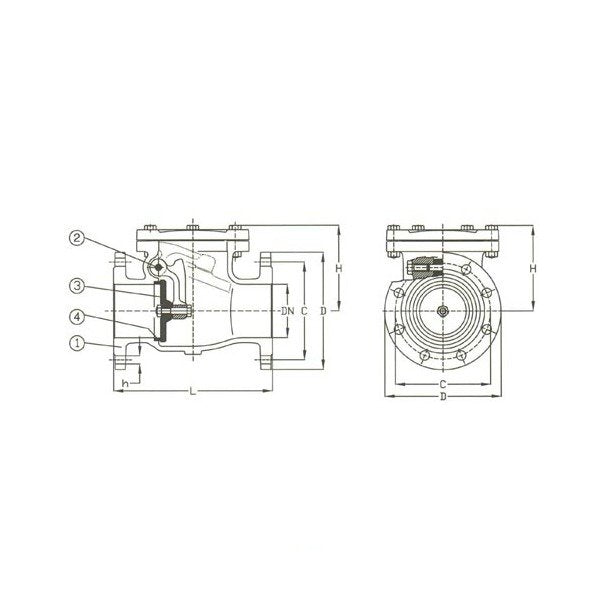

Specifications C

240 mm

Specifications Connection

Flanged Drilled

Specifications D

285 mm

Specifications Disc Material

Stainless Steel

Specifications H

195 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications Impaissa Code

753591 | 755957

Specifications L

400 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

150

Specifications Stem Material

Stainless Steel

Specifications T

22 in

Specifications Weight

67 kg
