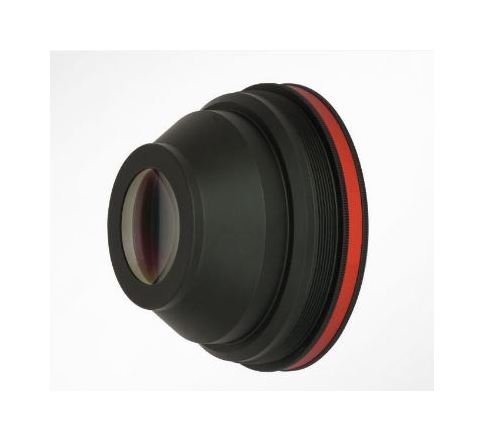

150mm Wavelength Stock F-Theta Lens
150mm Wavelength Stock F-Theta Lens
SKU:STO-781ba7
High-precision 9.4 µm, 150 mm Stock F-Theta Lens for industrial laser scanning applications.
Regular price
$649.99
Regular price
Sale price
$649.99
Unit price
per
Initiate Order
150mm Wavelength Stock F-Theta Lens
$649.99
Quantity: 1
Claim Your Seller Account
150mm Wavelength Stock F-Theta Lens
$649.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SO-FT-082-150 Stock F-Theta Lens is a precision optical instrument designed for industrial laser scanning applications. With a wavelength of 9.4 µm and an effective focal length of 150 mm, this lens offers remarkable clarity and precision. Its scanning width of 82x82 mm and telecentric angle of 3 degrees ensure accurate and consistent imaging. Meeting stringent institutional procurement standards, it features a pupil diameter of 20 mm, ±22 mm scan field, and mounting threads of 4-M5 for secure installation. The lens guarantees a focal spot diameter of 145-148 µm, making it ideal for high-precision scanning systems.
Product Specifications
Specifications Effective Focal Length
150 mm
Specifications Flange Distance
91 mm
Specifications Focal Spot Diameter
145-148
Specifications M1 M2 Distance
26.4 mm
Specifications M2 Lens Center
29 mm | 32.5 mm
Specifications M2 Threaded End
29.76 mm | 45.5 mm
Specifications Mounting Threads
4-M5
Specifications Pupil Diameter
20 mm
Specifications Scanning Width
82*82 mm
Specifications Scan Field
±22 mm
Specifications Telecentric Angle
3
Specifications Wavelength
9.4 µm
Specifications Working Distance
135.84 mm | 146.04 mm
