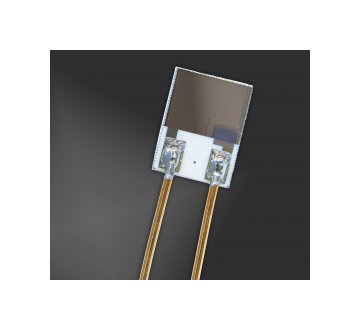

150pF Capacitance Humidity Sensor - Innovative Sensor Technology, USA
150pF Capacitance Humidity Sensor - Innovative Sensor Technology, USA
SKU:HUM-25c58c
High-quality 150pF Capacitance Humidity Sensor for precise and reliable humidity monitoring.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
150pF Capacitance Humidity Sensor - Innovative Sensor Technology, USA
$39.99
Quantity: 1
Claim Your Seller Account
150pF Capacitance Humidity Sensor - Innovative Sensor Technology, USA
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your humidity monitoring with the 150pF Capacitance Humidity Sensor from Innovative Sensor Technology, USA Division. Operating in a wide range of -50 to +150 ºC, this sensor offers precise capacitance of 150 pF with a tolerance of ±50 pF. Utilizing Gold (Au) and Copper (Cu) wires, and meeting the highest quality standards, this sensor ensures accurate and reliable humidity measurements for various applications.
Product Specifications
Dimensions Height
0.4 mm
Dimensions Length
5.0 mm
Dimensions Width
3.81 mm
Specifications Capacitance
150 pF
Specifications Capacitance Tolerance At 23 Degree Celsius C Temp
50 pF
Specifications Manufacturer Part Number
P14-W (150pF ± 50pF)
Specifications Old Product Code
040.00174
Specifications Operating Relative Humidity Rh Range
0 to 100 %
Specifications Operating Temperature Range
-50 to +150 ºC
Specifications Wire Diameter
0.4 mm
Specifications Wire Length
10 mm
Specifications Wire Type
Gold (Au)/Copper (Cu)
