151 Series High Lift Flange Weld Test Plug
151 Series High Lift Flange Weld Test Plug
SKU:HIG-e2d8bc
Experience seamless weld testing with the 151 Series High Lift Flange Weld Test Plug. Improve efficiency, save costs, and meet ANSI B16.5 standards effortlessly.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
151 Series High Lift Flange Weld Test Plug
$189.99
Quantity: 1
Claim Your Seller Account
151 Series High Lift Flange Weld Test Plug
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 151 Series 0.04 Inch High Lift Flange Weld Test Plug by Petersen® is a game-changer for weld testing procedures. Featuring a unique 'High Lift' seal design, this plug offers exceptional seal to pipe clearance, allowing it to effortlessly pass over weld penetrations without the need for grinding. This plug reduces costs, downtime, and waste disposal issues associated with traditional flange-to-pipe weld testing. With a focus on simplicity and efficiency, it enables monitoring downstream conditions, isolating and purging the weld area, performing the weld, and hydro testing weld joints to ANSI B16.5 standards all with one tool. Say goodbye to blind flanging upstream, vacuum trucks, and excessive water usage. Save time, money, and resources with this reliable and versatile welding solution.

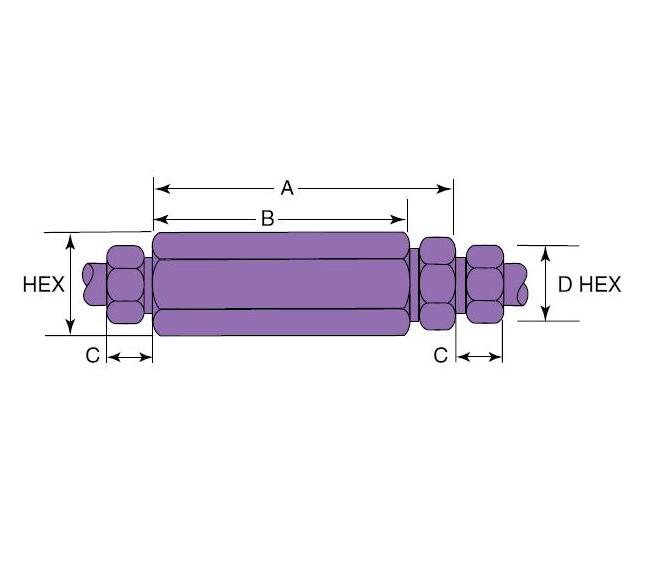

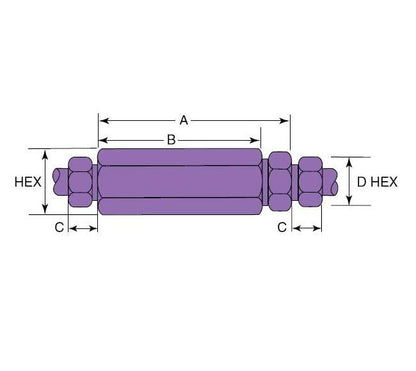

Product Specifications
Specifications A Length
4.31 in | 109.47 mm
Specifications B Length
3.50 in | 88.90 mm
Specifications C Length
0.53 in | 13.46 mm
Specifications D Hex
0.93 in | 23.62 mm
Specifications Fits Connection Type
SW-500
Specifications Hex
1.38 in | 35.05 mm
Specifications Orifice
0.375 in | 9.53 mm
Specifications Pressure Rating
10000 psi | 689.46 bar
Specifications Rated Cv
10
Specifications Tubing Engagement Depth
0.81 in | 20.6 mm
