151 Series High Lift Flange Weld Test Plug - 0.13in Seal Clearance

Name: 151 Series High Lift Flange Weld Test Plug - 0.13in Seal Clearance
Brand: Parker / Autoclave Engineers
SKU: HIG-8037da
Price: 129.99 USD
Availability: OutOfStock

SKU:HIG-8037da

Streamline welding and testing with the 151 Series High Lift Flange Weld Test Plug - 0.13in seal clearance. Rugged, versatile, and eco-friendly solution.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 151 Series High Lift Flange Weld Test Plug with 0.13in seal to pipe clearance is designed to streamline welding and testing processes with greater clearance for weld penetration, reducing downtime and waste disposal issues. This plug allows for downstream monitoring, isolation, purging, welding, and hydro testing to ANSI B16.5 standards using a single tool. Its rugged construction, versatile seal adjustments, and minimal water requirements make it a cost-effective and environmentally friendly choice for pipe repairs and retrofits in institutional and industrial settings.

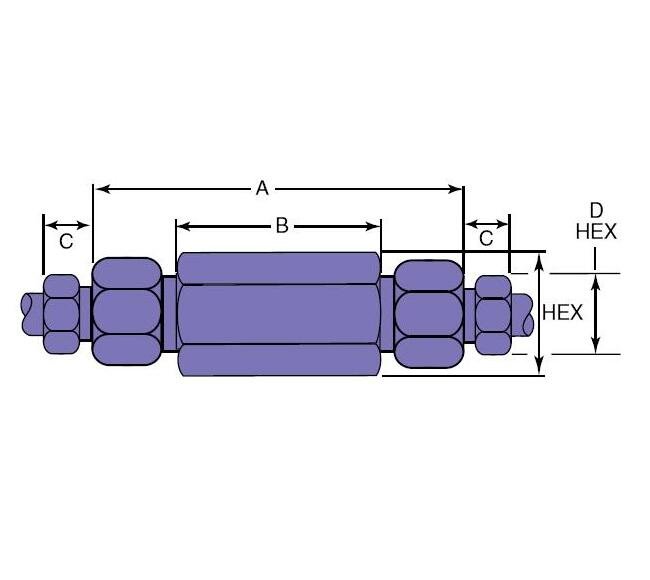

Product Specifications

Specifications A Length

2.94 in | 75.56 mm

Specifications B Length

1.68 in | 42.67 mm

Specifications Connection Size And Type

SW250

Specifications C Length

0.44 in | 11.17 mm

Specifications D Hex

0.63 in | 16.00 mm

Specifications Effective Filter Element Area

0.15 inÂ² | 96.77 mmÂ²

Specifications Hex

0.81 in | 20.57 mm

Specifications Micron Size

10/35

Specifications Orifice

0.125 in | 3.18 mm

Specifications Pressure Rating

15000 psi | 1034.19 bar

Specifications Tubing Engagement Depth

0.69 in | 17.5 mm
