151 Series High Lift Flange Weld Test Plug
151 Series High Lift Flange Weld Test Plug
SKU:HIG-27628f
Enhance efficiency and accuracy with the 151 Series High Lift Flange Weld Test Plug. Simplify your weld testing process with ease.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
151 Series High Lift Flange Weld Test Plug
$89.99
Quantity: 1
Claim Your Seller Account
151 Series High Lift Flange Weld Test Plug
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 151 Series High Lift Flange Weld Test Plug by Petersen® is a game-changer for weld testing efficiency. With a High Lift seal design providing enhanced seal to pipe clearance and seal expansion, this plug easily passes over weld penetrations, eliminating the need for grinding. Ideal for monitoring downstream conditions, isolating and purging weld areas, performing welds, and hydro testing to ANSI B16.5 standards with a single tool, this plug reduces expenses, downtime, and waste disposal issues associated with traditional testing methods. Its versatile design, rugged construction, and minimal water requirements make it a must-have for quick and cost-effective testing procedures.

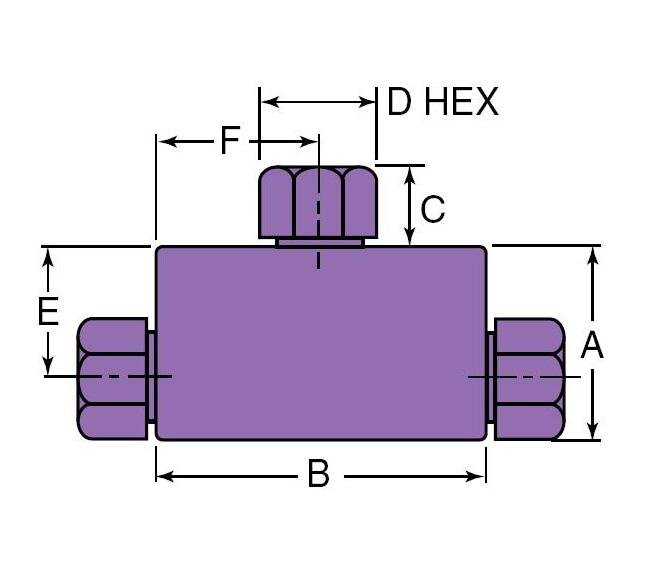

Product Specifications
Specifications A Height
1 in | 25.4 mm
Specifications Block Thickness
0.56 in | 14.27 mm
Specifications B Width
1.38 in | 34.93 mm
Specifications Connection Type
W062
Specifications C Height
0.31 in | 7.87 mm
Specifications D Hex
0.38 in | 9.65 mm
Specifications E Length
0.69 in | 17.45 mm
Specifications F Length
0.69 in | 17.45 mm
Specifications Minimum Opening
0.055 in | 1.40 mm
Specifications Outside Diameter Tube
1.59 mm | 1/16 in
Specifications Pressure Rating
15000 psi | 1034.20 bar
Specifications Tubing Engagement Depth
0.47 in | 11.9 mm
