The 151 Series High Lift Flange Weld Test Plug by Petersen® is a cutting-edge solution for seamless weld testing. With a high lift seal design allowing greater seal-to-pipe clearance, this plug eliminates the need for grinding weld penetrations, saving time and resources. It enables easy monitoring, isolation, purging, welding, and hydro testing in compliance with ANSI B16.5 standards. Featuring rugged construction, adjustable seal depth, and low water requirements, this plug ensures fast, efficient pipe repairs and retrofits while minimizing environmental impact.
Product Specifications

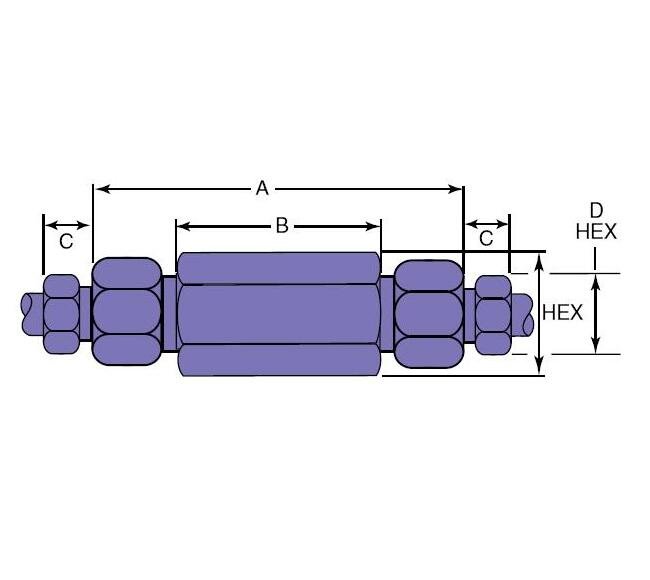

Specifications A Length
2.94 in | 75.56 mm
Specifications B Length
1.68 in | 42.67 mm
Specifications Connection Size And Type
SW375
Specifications C Length
0.53 in | 13.46 mm
Specifications D Hex
0.75 in | 19.05 mm
Specifications Effective Filter Element Area
0.15 in² | 96.77 mm²
Specifications Hex
1.00 in | 25.40 mm
Specifications Micron Size
10/35
Specifications Orifice
0.125 in | 3.18 mm
Specifications Pressure Rating
15000 psi | 1034.19 bar
Specifications Tubing Engagement Depth
0.75 in | 19.1 mm
