152 Inch (in) Casing Side Advanced Acoustical Cone for Woods Varofoil Fan
152 Inch (in) Casing Side Advanced Acoustical Cone for Woods Varofoil Fan
SKU:SIL-cd5fae
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
152 Inch (in) Casing Side Advanced Acoustical Cone for Woods Varofoil Fan
$49.99
Quantity: 1
Claim Your Seller Account
152 Inch (in) Casing Side Advanced Acoustical Cone for Woods Varofoil Fan
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Product Specifications
Dynamic Insertion Loss Dynamic Insertion Loss 1000 Hertz Hz 1500
31 dB
Dynamic Insertion Loss Dynamic Insertion Loss 125 Hertz Hz 1500
18 dB
Dynamic Insertion Loss Dynamic Insertion Loss 2000 Hertz Hz 1500
28 dB
Dynamic Insertion Loss Dynamic Insertion Loss 250 Hertz Hz 1500
18 dB
Dynamic Insertion Loss Dynamic Insertion Loss 4000 Hertz Hz 1500
20 dB
Dynamic Insertion Loss Dynamic Insertion Loss 500 Hertz Hz 1500
31 dB
Dynamic Insertion Loss Dynamic Insertion Loss 63 Hertz Hz 1500 F
9 dB
Dynamic Insertion Loss Dynamic Insertion Loss 8000 Hertz Hz 1500
20 dB
Note
For each 1500 FPM over 1500, add 1 dB per band.

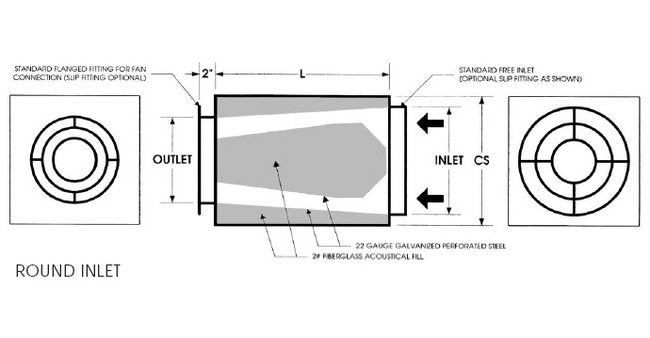

Specifications Casing Side
152 in
Specifications Inlet Diameter
145 in
Specifications Length
139 in
Specifications Maximum Air Flow
147000 ft³/min
Specifications Outlet Diameter
71.00 in
Specifications Shape Of Inletoutlet
Round Inlet
Specifications Silencer Size Class
D
Specifications Type
Acoustical
Specifications Use For
Woods Varofoil Fans
