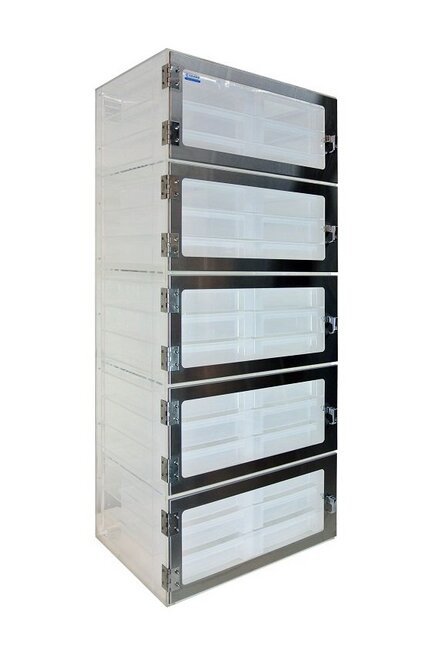

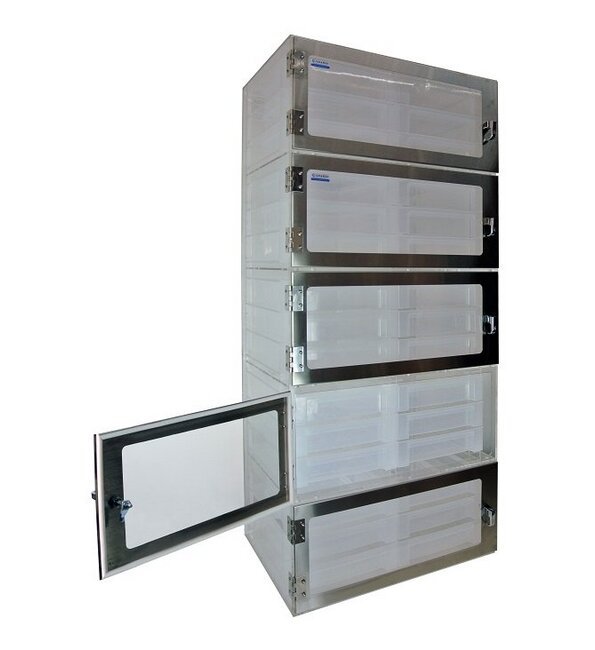

1520 Series Acrylic Five Drawer Desiccator
1520 Series Acrylic Five Drawer Desiccator
SKU:152-712f9f
Organize and store components in a controlled, low-humidity environment with the 1520 Series Acrylic Five Drawer Desiccator. Ensure longevity and protection with clear acrylic, stainless steel features, and airtight seal.
Regular price
$1,549.99
Regular price
Sale price
$1,549.99
Unit price
per
Initiate Order
1520 Series Acrylic Five Drawer Desiccator
$1,549.99
Quantity: 1
Claim Your Seller Account
1520 Series Acrylic Five Drawer Desiccator
$1,549.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1520 Series Acrylic Five Drawer Desiccator is designed for precise organizational storage of parts and components in a low-humidity, controlled environment. With five chambers and a clear acrylic build, this desiccator ensures optimal visibility and protection. Features like a Stainless steel door frame, metal compression latch, and Santoprene seal enhance durability and airtightness. Optional accessories include Gas-in Port, Purge Control Unit, Hygro-Thermometers, and more. Extend shelf life and maintain product integrity with this reliable solution.
Product Specifications
Additional Information Additional Information
Acrylic can be damaged by alcohol and some cleaning agents.Stainless steel door frame and door hinge.Metal lift-and-turn compression latch.Single-piece Santoprene seal.30 Polypropylene drawers.Removable plenum chamber.
Applications 0
Sliding Drawer Storage
Options Options
Gas-in Port & Pressure Relief Valve (1/4" OD tubing fitting)One-Channel Automatic Purge Control Unit (PCU) with one humidity sensor.Flowmeter with an external valve mount. Flowmeter range is from 2-20 SCFH air. (It is not required if you order a PCU.)Big Digit Hygro-Thermometer (Humidity range: 10% to 99 % RH/ Temperature range: 14 ºF to 140 ºF)Small Digit Hygro-Thermometer (Humidity range: 10% to 99 % RH/ Temperature range: 14 ºF to 140 ºF)Epoxy powder coated steel stand with caster (including two locking). Available in 30'' and 35'' height with an optional upgrade to leveling mounts.Cam lock with an option to have the same or different key for each door. Please note that the price for the cam lock is per door.Stainless steel locking bracket for use with a padlock. Please note that the price for the locking bracket is per door.The back plenum can be removed for applications that require isolated chambers.
Specifications Access Door
One Side
Specifications Door Opening Height
10.3125 in
Specifications Door Opening Width
24.5 in
Specifications Drawer Depth
13.25 in
Specifications Drawer Height
3 in
Specifications Drawer Width
10.25 in
Specifications Material
Clear Acrylic
Specifications Material Thickness
1/4 in
Specifications Number Of Chambers
5
Specifications Overall Depth
18 in
Specifications Overall Height
62 in
Specifications Overall Width
26 in
