1520 Series Six Door Acrylic Desiccator with Gas-in Port & Pressure Relief Valve
1520 Series Six Door Acrylic Desiccator with Gas-in Port & Pressure Relief Valve
SKU:152-74f436
Keep components safe in our 1520 Series Acrylic Desiccator with Gas-in Port. Ideal for preserving parts in controlled environments.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
1520 Series Six Door Acrylic Desiccator with Gas-in Port & Pressure Relief Valve
$1,899.99
Quantity: 1
Claim Your Seller Account
1520 Series Six Door Acrylic Desiccator with Gas-in Port & Pressure Relief Valve
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

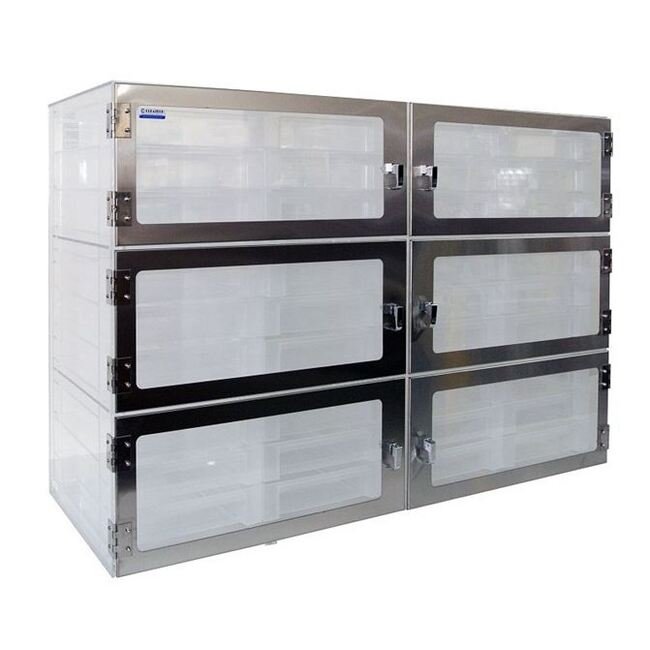

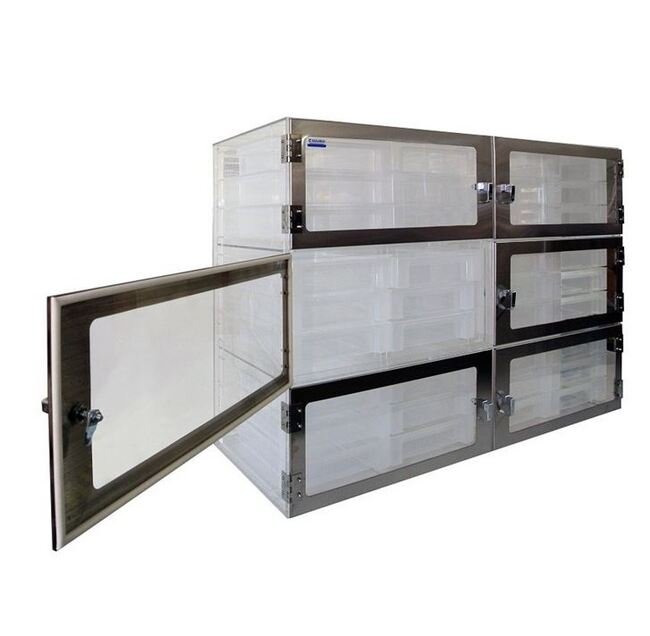

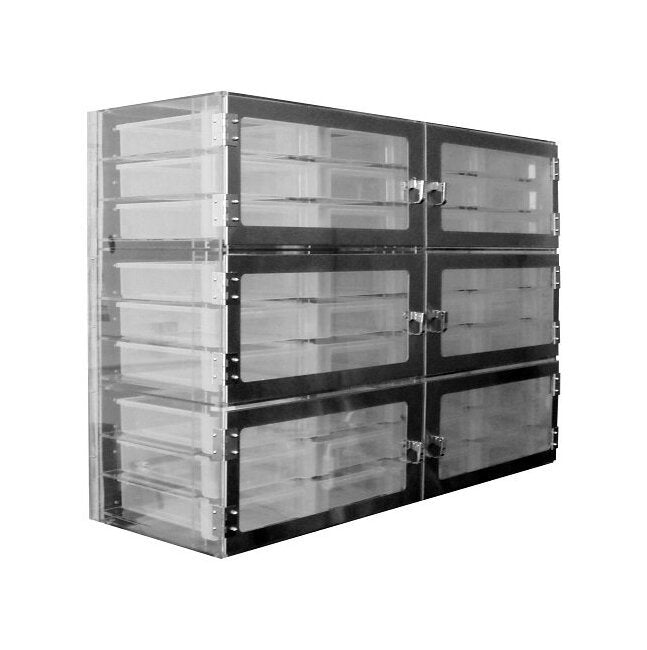

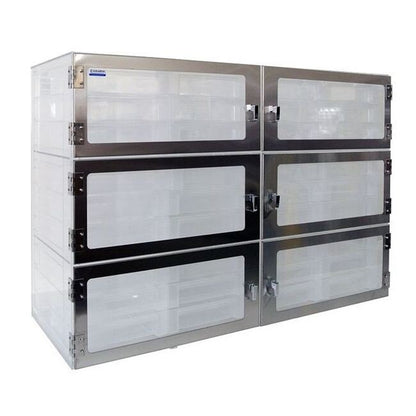

The 1520 Series 6-Door Acrylic Desiccator ensures precise organization and storage of sensitive components in a controlled, low-humidity environment. Featuring a durable stainless steel frame, a secure compression latch, and 36 polypropylene drawers, this desiccator is designed for extended shelf life of stored parts. With options like a Gas-in Port and Pressure Relief Valve, as well as compatibility with automatic purge control units and hygro-thermometers, it offers optimum functionality for industrial and laboratory settings.
Product Specifications
Applications 0
Sliding Drawer Storage
Options Options
Gas-in Port & Pressure Relief Valve (1/4" OD tubing fitting)One-Channel Automatic Purge Control Unit (PCU) with one humidity sensor.Flowmeter with an external valve mount. Flowmeter range is from 2-20 SCFH air. (It is not required if you order a PCU.)Big Digit Hygro-Thermometer (Humidity range: 10% to 99 % RH/ Temperature range: 14ºF to 140ºF)Small Digit Hygro-Thermometer (Humidity range: 10% to 99 % RH/ Temperature range: 14ºF to 140ºF)Epoxy powder coated steel stand with caster (including two locking). Available in 30'' and 35'' height with an optional upgrade to leveling mounts.Cam lock with an option to have the same or different key for each door. Please note that the price for the cam lock is per door.Stainless steel locking bracket for use with a padlock. Please note that the price for the locking bracket is per door.The back plenum can be removed for applications that require isolated chambers.
Specifications Access Door
One Side
Specifications Door Opening Height
10.3125 in
Specifications Door Opening Width
24.5 in
Specifications Drawer Depth
13.25 in
Specifications Drawer Height
3 in
Specifications Drawer Width
10.25 in
Specifications Material
Clear Acrylic
Specifications Material Thickness
1/4 in
Specifications Number Of Chambers
6
Specifications Overall Depth
18 in
Specifications Overall Height
38 in
Specifications Overall Width
52 in
