1520 Series Ten-Door Drawer Desiccator Cabinet
1520 Series Ten-Door Drawer Desiccator Cabinet
SKU:152-0702e2
Organize, label, and store parts in low-humidity environment with 1520 Series Ten-Door Drawer Desiccator. Enhance shelf life and ensure efficiency.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
1520 Series Ten-Door Drawer Desiccator Cabinet
$2,499.99
Quantity: 1
Claim Your Seller Account
1520 Series Ten-Door Drawer Desiccator Cabinet
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

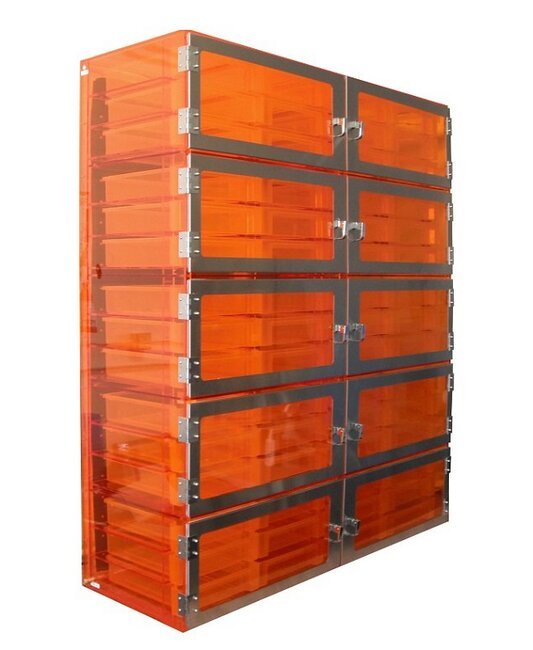

The 1520 Series Ten-Door Drawer Desiccator Cabinet is designed to provide optimal organization, labeling, and storage of parts and components in a low-humidity, controlled environment. Constructed with durable 1/4 inch thick Amber Acrylic material, this cabinet features ten chambers with sliding drawers for easy access and efficient storage. The stainless steel door frame and hinge ensure durability and reliability. Enhance the shelf life of stored items by integrating it with optional Gas-in Port, Pressure Relief Valve, Automatic Purge Control Unit, and other accessories. With a versatile design and high-quality construction, this desiccator cabinet is ideal for industries requiring precise humidity control and part organization.
Product Specifications
Additional Information Additional Information
Metal lift-and-turn compression latch.Single-piece Santoprene seal.60 Polypropylene drawers.Removable plenum chamber
Applications 0
Sliding Drawer Storage
Options Options
Gas-in Port & Pressure Relief Valve (1/4" OD tubing fitting)One-Channel Automatic Purge Control Unit (PCU) with one humidity sensor.Flowmeter with an external valve mount. Flowmeter range is from 2-20 SCFH air. (It is not required if you order a PCU.)Big Digit Hygro-Thermometer (Humidity range: 10% to 99 % RH/ Temperature range: 14 ºF to 140 ºF)Small Digit Hygro-Thermometer (Humidity range: 10% to 99 % RH/ Temperature range: 14 ºF to 140 ºF)Epoxy powder coated steel stand with caster (including two locking). Available in 30'' and 35'' height with an optional upgrade to leveling mounts.Cam lock with an option to have the same or different key for each door. Please note that the price for the cam lock is per door.Stainless steel locking bracket for use with a padlock. Please note that the price for the locking bracket is per door.The back plenum can be removed for applications that require isolated chambers.
Specifications Access Door
One Side
Specifications Door Opening Height
10.3125 in
Specifications Door Opening Width
24.5 in
Specifications Drawer Depth
13.25 in
Specifications Drawer Height
3 in
Specifications Drawer Width
10.25 in
Specifications Material
Amber Acrylic
Specifications Material Thickness
1/4 in
Specifications Number Of Chambers
10
Specifications Overall Depth
18 in
Specifications Overall Height
62 in
Specifications Overall Width
52 in
