1520 Series Three Door Sliding Tray Desiccator Cabinet
1520 Series Three Door Sliding Tray Desiccator Cabinet
SKU:152-1bf6db
Organize, protect, and extend part shelf life in this secure and customizable 3-chamber sliding tray desiccator cabinet.
Regular price
$999.99
Regular price
Sale price
$999.99
Unit price
per
Initiate Order
1520 Series Three Door Sliding Tray Desiccator Cabinet
$999.99
Quantity: 1
Claim Your Seller Account
1520 Series Three Door Sliding Tray Desiccator Cabinet
$999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

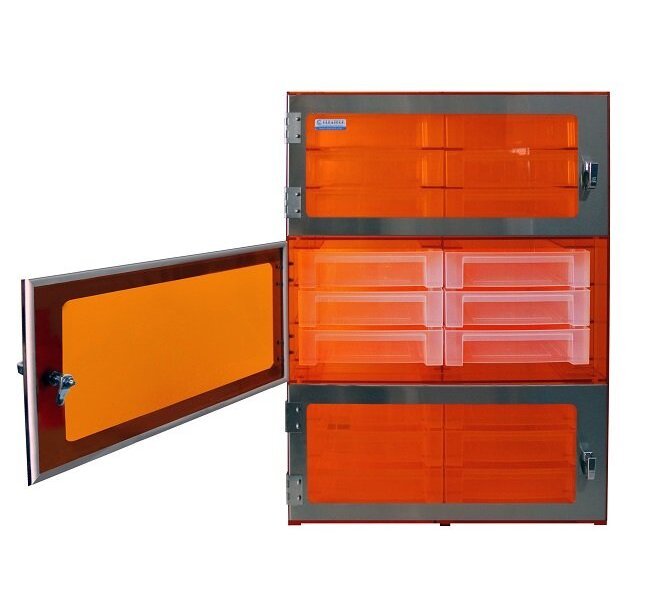

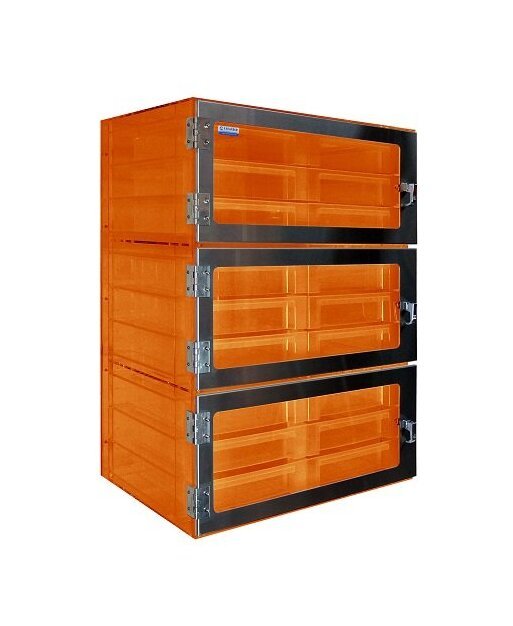

The 1520 Series Three Door Sliding Tray Desiccator Cabinet offers precise organization and storage of parts in a controlled, low-humidity environment. Constructed with durable 1/4 inch Amber Acrylic material, this cabinet features three chambers with sliding drawers for efficient access. Enhance shelf life with optional accessories like gas-in port, automatic purge control unit, and hygro-thermometers. The stainless steel door frame ensures security and durability, while the removable plenum chamber allows customization for isolated chamber needs.
Product Specifications
Additional Information Additional Information
Metal lift-and-turn compression latch.Single-piece Santoprene seal.18 Polypropylene drawers.Removable plenum chamber.
Applications 0
Sliding Drawer Storage
Options Options
Gas-in Port & Pressure Relief Valve (1/4" OD tubing fitting)One-Channel Automatic Purge Control Unit (PCU) with one humidity sensor.Flowmeter with an external valve mount. Flowmeter range is from 2-20 SCFH air. (It is not required if you order a PCU.)Big Digit Hygro-Thermometer (Humidity range: 10% to 99 % RH/ Temperature range: 14 ºF to 140 ºF)Small Digit Hygro-Thermometer (Humidity range: 10% to 99 % RH/ Temperature range: 14 ºF to 140 ºF)Epoxy powder coated steel stand with caster (including two locking). Available in 30'' and 35'' height with an optional upgrade to leveling mounts.Cam lock with an option to have the same or different key for each door. Please note that the price for the cam lock is per door.Stainless steel locking bracket for use with a padlock. Please note that the price for the locking bracket is per door.The back plenum can be removed for applications that require isolated chambers.
Specifications Access Door
One Side
Specifications Door Opening Height
10.3125 in
Specifications Door Opening Width
24.5 in
Specifications Drawer Depth
13.25 in
Specifications Drawer Height
3 in
Specifications Drawer Width
10.25 in
Specifications Material
Amber Acrylic
Specifications Material Thickness
1/4 in
Specifications Number Of Chambers
3
Specifications Overall Depth
18 in
Specifications Overall Height
38 in
Specifications Overall Width
26 in
