1530 Series ESD Desiccator Cabinet - 24x24
1530 Series ESD Desiccator Cabinet - 24x24
SKU:153-3883b7
Optimal humidity control for sensitive electronics & samples. ESD-safe cabinet with precise oxygen levels & chemical resistance.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
1530 Series ESD Desiccator Cabinet - 24x24
$1,499.99
Quantity: 1
Claim Your Seller Account
1530 Series ESD Desiccator Cabinet - 24x24
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

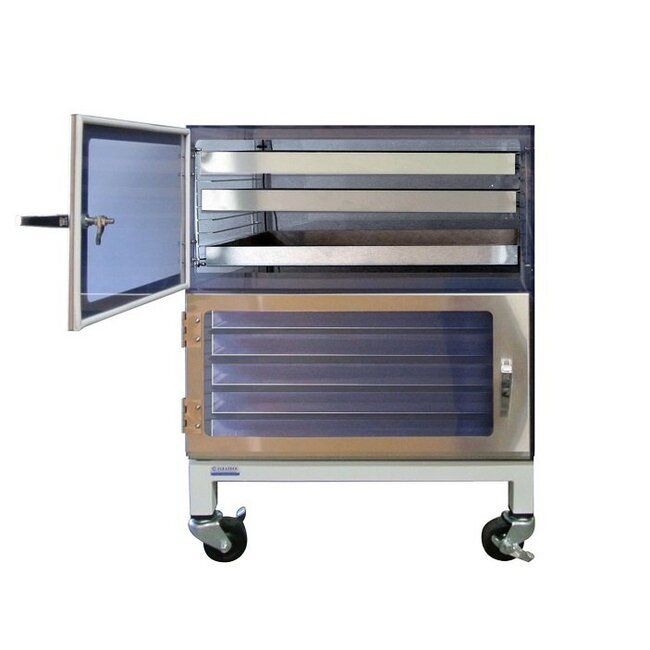

The 1530 Series Electrostatic Discharge (ESD) Desiccator Cabinet is a state-of-the-art solution designed to store humidity-sensitive samples, products, and electronics in a clean, dry, electro-static safe, and oxygen-free environment. With up to two chambers and up to 5 stainless steel drawers per chamber, this cabinet offers precise humidity and oxygen level control down to 1%, eliminating degradation risks. Its static dissipative PVC construction ensures ESD control without ionization, while its chemically resistant material and surface resistivity of 10^6 – 10^8 ohms per square make it ideal for various applications requiring stringent storage conditions.
Product Specifications
Additional Information Additional Information
Stainless steel door frame and door hinge.Wire rack for holding shelving and trays.Lift-and-turn latches with Long lever for easy access.Single-piece Santoprene seal.
Applications 0
Sliding Drawer Storage
Options Options
Gas-in Port & Pressure Relief Valve (1/4" OD tubing fitting)One-Channel Automatic Purge Control Unit (PCU) with one humidity sensor.Flowmeter with an external valve mount. Flowmeter range is from 2-20 SCFH air. (It is not required if you order a PCU.)Big Digit Hygro-Thermometer (Humidity range: 10% to 99 % RH/ Temperature range: 14 ºF to 140 ºF)Small Digit Hygro-Thermometer (Humidity range: 10% to 99 % RH/ Temperature range: 14 ºF to 140 ºF)Epoxy powder coated steel stand with caster (including two locking). Available in 30'' and 35'' height with an optional upgrade to leveling mounts.Cam lock with an option to have the same or different key for each door. Please note that the price for the cam lock is per door.Stainless steel locking bracket for use with a padlock. Please note that the price for the locking bracket is per door.Stainless steel bottom plate installed on the bottom of each chamber.For applications that require isolated chambers, the back plenum needs to be removed.
Specifications Chamber Depth
18 in
Specifications Chamber Height
12 in
Specifications Chamber Width
24 in
Specifications Door Opening Height
10.125 in
Specifications Door Opening Width
23.375 in
Specifications Internal Drawer Depth
15.25 in
Specifications Internal Drawer Height
1.5 in
Specifications Internal Drawer Width
21 in
Specifications Material
Static Dissipative Polyvinyl Chloride (PVC)
Specifications Material Thickness
1/4 in
Specifications Number Of Chambers
2
Specifications Overall Depth
18 in
Specifications Overall Height
24 in
Specifications Overall Width
24 in
Specifications Shelf Usable Space Depth
15.5 in
Specifications Shelf Usable Space Width
21.5 in
Specifications Total Number Of Stainless Steel Drawers
10
