1530 Series ESD Desiccator Cabinet - 48x60 in
1530 Series ESD Desiccator Cabinet - 48x60 in
SKU:153-cf8a9b
Protect electronics and samples with our ESD Desiccator Cabinet. Ensure ESD safety with 10 chambers & nitrogen purge control.
Regular price
$3,499.99
Regular price
Sale price
$3,499.99
Unit price
per
Initiate Order
1530 Series ESD Desiccator Cabinet - 48x60 in
$3,499.99
Quantity: 1
Claim Your Seller Account
1530 Series ESD Desiccator Cabinet - 48x60 in
$3,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

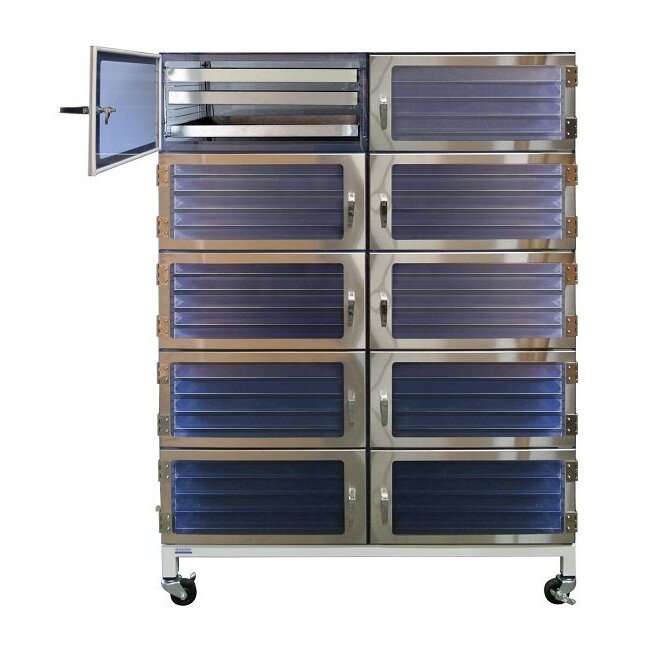

The 1530 Series Electrostatic Discharge (ESD) Desiccator Cabinet provides superior ESD protection with ten chambers and stainless steel trays. Ideal for storing humidity-sensitive samples and electronics in a clean, dry, and oxygen-free environment. Static dissipative PVC construction, with advanced features like nitrogen purge control and surface resistivity of 10^6 – 10^8 ohms per square, ensures optimal ESD control. This cabinet offers exceptional reliability and durability for institutional and government procurement needs.
Product Specifications
Additional Information Additional Information
Stainless steel door frame and door hinge.Wire rack for holding shelving and trays.Lift-and-turn latches with Long lever for easy access.Single-piece Santoprene seal.
Applications 0
Sliding Drawer Storage
Options Options
Gas-in Port & Pressure Relief Valve (1/4" OD tubing fitting)One-Channel Automatic Purge Control Unit (PCU) with one humidity sensor.Flowmeter with an external valve mount. Flowmeter range is from 2-20 SCFH air. (It is not required if you order a PCU.)Big Digit Hygro-Thermometer (Humidity range: 10% to 99 % RH/ Temperature range: 14 ºF to 140 ºF)Small Digit Hygro-Thermometer (Humidity range: 10% to 99 % RH/ Temperature range: 14 ºF to 140 ºF)Epoxy powder coated steel stand with caster (including two locking). Available in 30'' and 35'' height with an optional upgrade to leveling mounts.Cam lock with an option to have the same or different key for each door. Please note that the price for the cam lock is per door.Stainless steel locking bracket for use with a padlock. Please note that the price for the locking bracket is per door.Stainless steel bottom plate installed on the bottom of each chamber.For applications that require isolated chambers, the back plenum needs to be removed.
Specifications Chamber Depth
18 in
Specifications Chamber Height
12 in
Specifications Chamber Width
24 in
Specifications Door Opening Height
10.125 in
Specifications Door Opening Width
23.375 in
Specifications Internal Drawer Depth
15.25 in
Specifications Internal Drawer Height
1.5 in
Specifications Internal Drawer Width
21 in
Specifications Material
Static Dissipative Polyvinyl Chloride (PVC)
Specifications Material Thickness
1/4 in
Specifications Number Of Chambers
10
Specifications Overall Depth
18 in
Specifications Overall Height
60 in
Specifications Overall Width
48 in
Specifications Shelf Usable Space Depth
15.5 in
Specifications Shelf Usable Space Width
21.5 in
Specifications Total Number Of Stainless Steel Drawers
50
