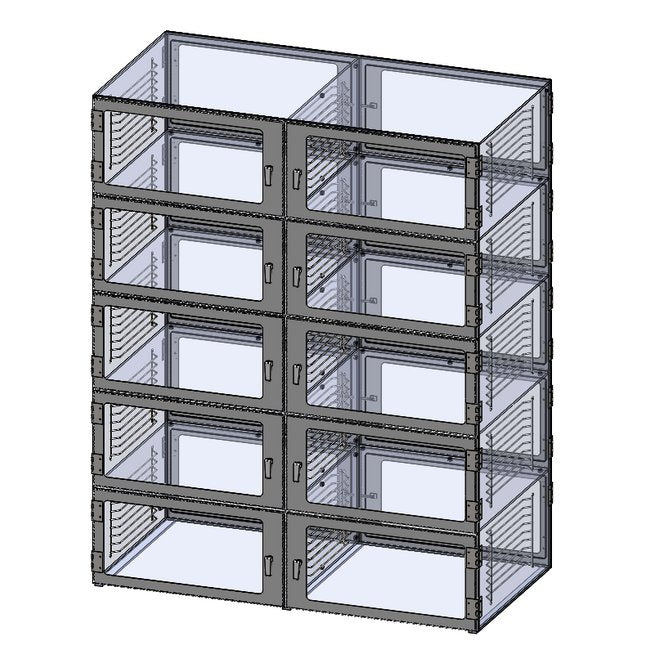

1540 Series 18 Inch Ten Chamber Pass-Through Desiccator Cabinet
1540 Series 18 Inch Ten Chamber Pass-Through Desiccator Cabinet
SKU:154-2ff05f
Innovative 1540 Series 18" Ten Chamber Desiccator Cabinet with advanced ESD control
Regular price
$2,199.99
Regular price
Sale price
$2,199.99
Unit price
per
Initiate Order
1540 Series 18 Inch Ten Chamber Pass-Through Desiccator Cabinet
$2,199.99
Quantity: 1
Claim Your Seller Account
1540 Series 18 Inch Ten Chamber Pass-Through Desiccator Cabinet
$2,199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1540 Series 18 Inch Ten Chamber Pass-Through Desiccator Cabinet is designed for dual access, with front and rear doors allowing seamless pass-through operations. Constructed with 1/4" Transparent Static Dissipative Polyvinyl Chloride (PVC), this cabinet offers static charge elimination, chemical resistance, and ESD control. Each chamber measures 24 x 18 x 12 inches, providing ample storage space to maintain a controlled environment. Optional features like Gas-in Port, Pressure Relief Valve, and Automatic Purge Control Unit enhance functionality for diverse applications.
Product Specifications
Additional Information Additional Information
Front and rear access doors allow for pass-through operations.Stainless steel door frame and door hinge.Stainless steel wire rack for shelving. A pair of wire racks is needed for each chamber and are optional if there are no shelves.Metal lift-and-turn latch.Single-piece Santoprene seal.
Applications 0
Pass-Through Chambers
Options Options
Gas-in Port & Pressure Relief Valve (1/4" OD tubing fitting)One-Channel Automatic Purge Control Unit (PCU) with one humidity sensor.Flowmeter with an external valve mount. Flowmeter range is from 2-20 SCFH air. (It is not required if you order a PCU.)Big Digit Hygro-Thermometer (Humidity range: 10% to 99 % RH/ Temperature range: 14 ºF to 140 ºF)Small Digit Hygro-Thermometer (Humidity range: 10% to 99 % RH/ Temperature range: 14 ºF to 140 ºF)Epoxy powder coated steel stand with caster (including two locking). Available in 30'' and 35'' height with an optional upgrade to leveling mounts.Perforated stainless steel, acrylic or static-dissipative PVC shelves. (Wire racks are required for shelf placement.)Cam lock with an option to have the same or different key for each door. Please note that the price for the cam lock is per door.Stainless steel locking bracket for use with a padlock. Please note that the price for the locking bracket is per door.Stainless steel bottom plate installed on the bottom of each chamber.Chambers can either be interconnected using a perforated chamber divider or isolated to maintain a controlled environment.
Specifications Access Door
Two Sides
Specifications Chamber Size
24 x 18 x 12 in
Specifications Door Opening Height
10.1875 in
Specifications Door Opening Width
22.375 in
Specifications Internal Usable Space Depth
16.125 in
Specifications Internal Usable Space Height
11.75 in
Specifications Material
Transparent Static Dissipative Polyvinyl Chloride (PVC)
Specifications Material Thickness
1/4 in
Specifications Number Of Chambers
10
Specifications Overall Depth
18 in
Specifications Overall Height
60 in
Specifications Overall Width
48 in
Specifications Shelf Usable Space Depth
15.5 in
Specifications Shelf Usable Space Width
21.5 in
