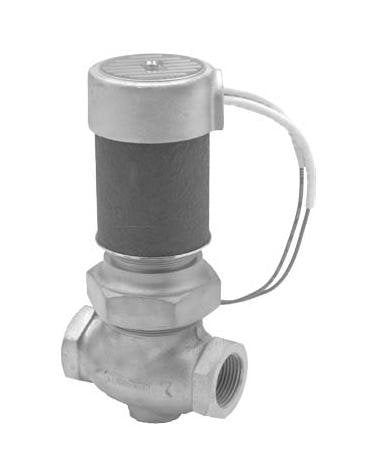

15400 Series Bronze Solenoid Valve
15400 Series Bronze Solenoid Valve
SKU:ATK-b7de5e
High-performance 15400 Series Bronze Solenoid Valve for fluid applications, with semi-direct lift action and compatibility with various fluids.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
15400 Series Bronze Solenoid Valve
$149.99
Quantity: 1
Claim Your Seller Account
15400 Series Bronze Solenoid Valve
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

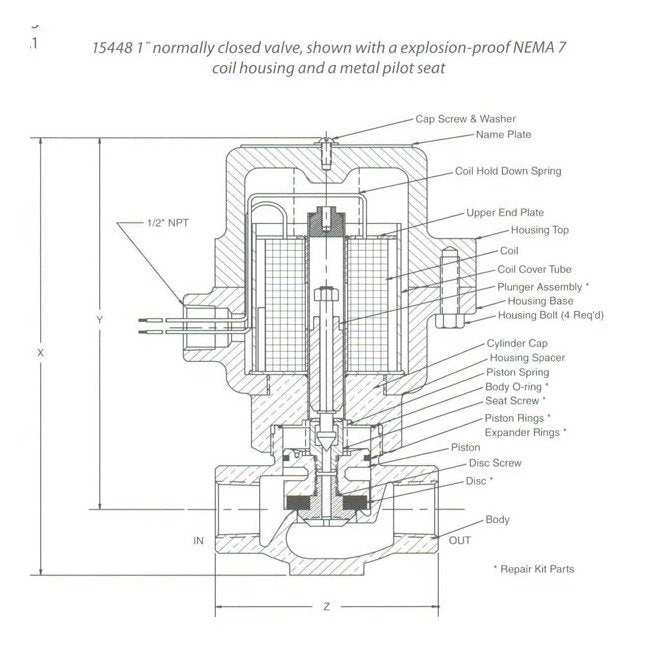

The 15400 Series Bronze Solenoid Valve is a high-performance valve designed for a variety of fluid applications. Featuring a semi-direct lift action, this valve operates smoothly even at zero pressure differential, with a maximum pressure of 300 psi. Constructed with naval M bronze, it can handle media temperatures ranging from -65 to 300°F, making it suitable for air, gasses, liquids, hydraulic fluids, and more. With optional seat and seal materials available, this valve ensures compatibility with different fluid types and pressures. The valve is configured as normally closed, with a coil insulation rating of Class B and dimensions of 7.4375" X 6.5" X 3".
Product Specifications
Specifications Body Material
Bronze
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class B (155° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
1/2 in
Specifications Connection Type
Female NPT
Specifications Cv
3.50
Specifications Dim X
7.4375 in
Specifications Dim Y
6.5 in
Specifications Dim Z
3 in
Specifications Fluid Media Type
Liquid up to 40 SUS
Specifications Main Seat Orifice
.5 in

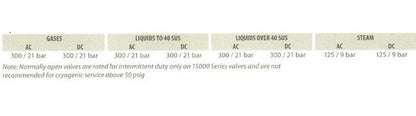

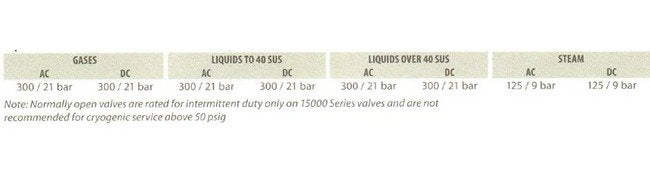

Specifications Operating Pressure
0 to 300 psig | 0 to 21 bar
Specifications Position Of Valve De Energized
Normally Closed
Specifications Seat Seal Material
EPR
Specifications Series
15400
Specifications Temperature Range
-65 to 300 ºF | -54 to 149 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
