155 mm Diameter High-Voltage Ceramic Capacitors

Name: 155 mm Diameter High-Voltage Ceramic Capacitors
Brand: High Energy Corp.
SKU: CER-ab79e5
Price: 149.99 USD
Availability: OutOfStock

SKU:CER-ab79e5

High-performance 155 mm Ceramic Capacitors for high-voltage applications. Up to 30 kVDC, 90 kVA power rating, and 50-7000 pF capacitance. Four Class I TC options.

$149.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

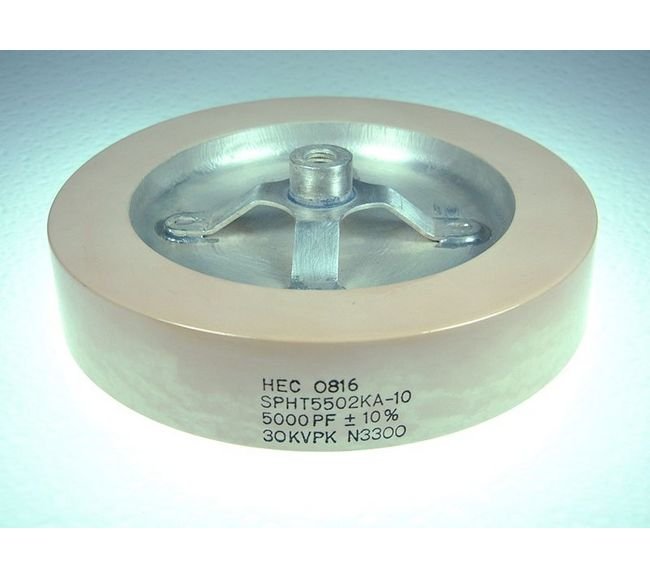

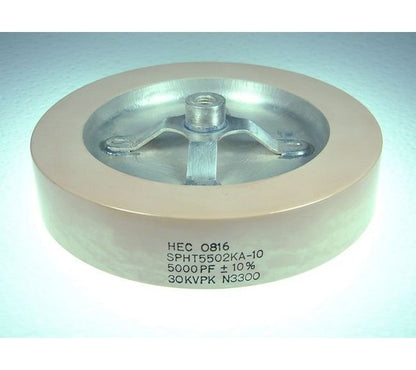

The SPHT 155 mm Diameter Power Disk Ceramic Capacitors offer exceptional performance for high-voltage applications in commercial, industrial, and government sectors. With a working voltage of up to 30 kVDC and a power rating of up to 90 kVA, these capacitors ensure reliable and stable operation. Featuring a capacitance range of 50 to 7000 pF and a choice of four Class I TCs, these capacitors are designed to meet the stringent requirements of institutional procurement standards, ensuring high-quality and compliance with industry regulations.

Product Specifications

Specifications Cap

7000 pF

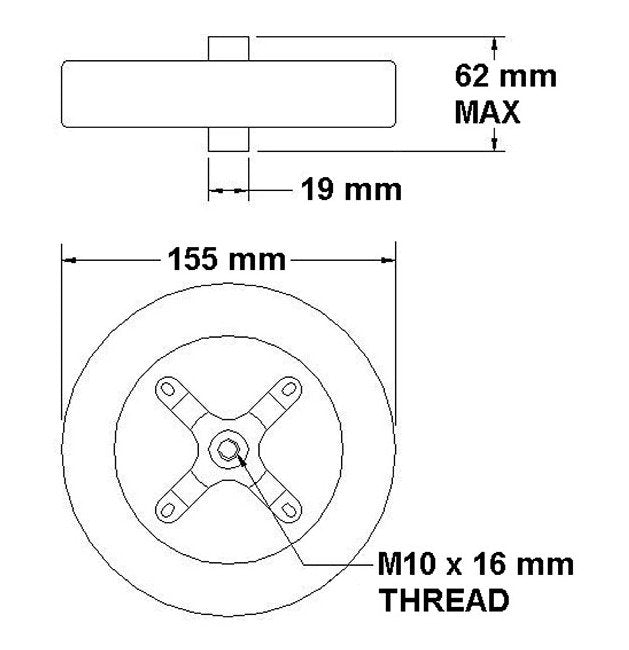

Specifications Diameter

155 mm

Specifications Dielectric Tc

N3300

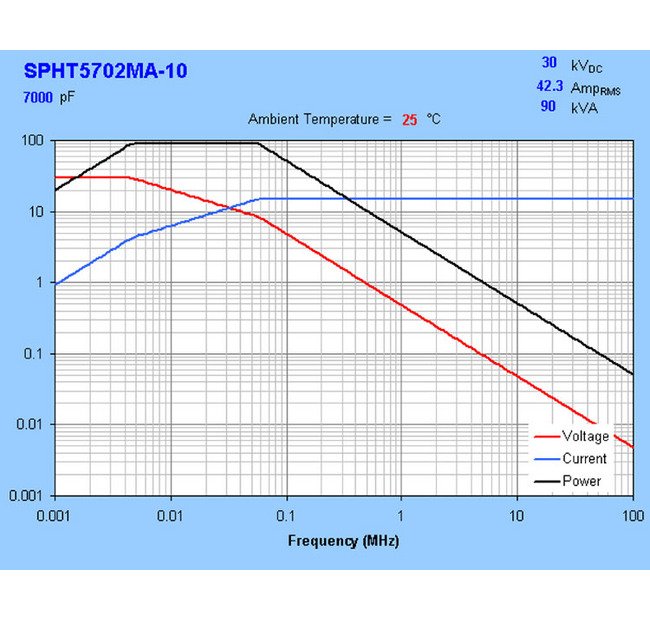

Specifications Fh

0.0568 MHz

Specifications Fl

0.00454 MHz

Specifications Imax Rms

15 A

Specifications Smax

90 kV·A

Specifications Thread

M10

Specifications Vmax Dc

30 kV
