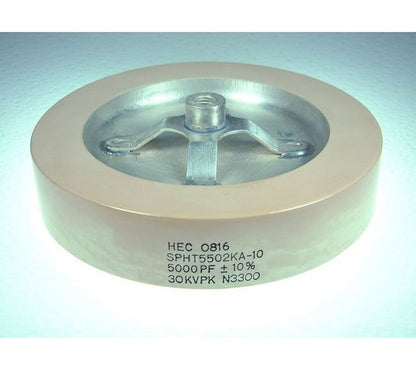

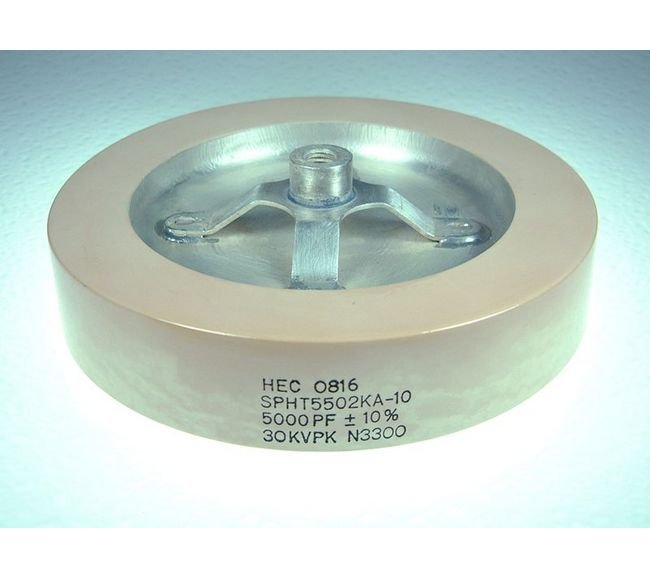

155 mm Power Disk Ceramic Capacitors - SPHT Series
155 mm Power Disk Ceramic Capacitors - SPHT Series
SKU:CER-f8d4f3
Enhance your power systems with SPHT 155mm Ceramic Capacitors - Up to 30kVDC, 90kVA, 50-7000pF, 4 TC options.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
155 mm Power Disk Ceramic Capacitors - SPHT Series
$39.99
Quantity: 1
Claim Your Seller Account
155 mm Power Disk Ceramic Capacitors - SPHT Series
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your power systems with our SPHT 155 mm Diameter Power Disk Ceramic Capacitors. These capacitors boast exceptional performance with a working voltage of up to 30 kVDC, power rating of up to 90 kVA, and a capacitance range of 50 to 7000 pF. The capacitors come in 70, 100, 140, and 165 mm diameters, offering flexibility for various applications. With a choice of four Class I TC's, these capacitors ensure reliability and precision in demanding environments. Engineered for efficiency and durability, our SPHT capacitors are ideal for both consumer and institutional buyers seeking high-quality components that meet stringent procurement standards.
Product Specifications
Specifications Cap
3000 pF
Specifications Diameter
155 mm
Specifications Dielectric Tc
N800
Specifications Fh
0.132 MHz
Specifications Fl
0.0106 MHz
Specifications Imax Rms
15 A
Specifications Smax
90 kV·A
Specifications Thread
M10
Specifications Vmax Dc
30 kV
