1550-Gallon Horizontal Air Receiver Tank, 165 PSI MAWP
1550-Gallon Horizontal Air Receiver Tank, 165 PSI MAWP
SKU:REC-e84b38
Durable 1550-gal Air Receiver Tank, 165 psi MAWP, reliable storage for air compression systems
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
1550-Gallon Horizontal Air Receiver Tank, 165 PSI MAWP
$2,899.99
Quantity: 1
Claim Your Seller Account
1550-Gallon Horizontal Air Receiver Tank, 165 PSI MAWP
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

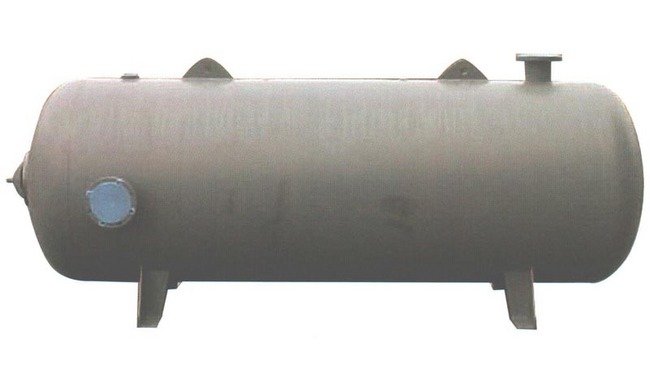

The 1550-gallon Horizontal Air Receiver Tank with a maximum allowable working pressure (MAWP) of 165 psi is a robust and reliable solution for industrial air compression systems. With a spacious nominal capacity of 1550 gallons (207.22 ft³), this tank ensures efficient air storage and smooth operation. Measuring 98.00 inches in length and 54.00 inches in outer diameter, it provides ample space for air storage while maintaining a compact design. The tank is constructed to meet stringent industry standards for durability and performance, making it ideal for both consumer and institutional applications.
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Specifications Cross Reference
C102285

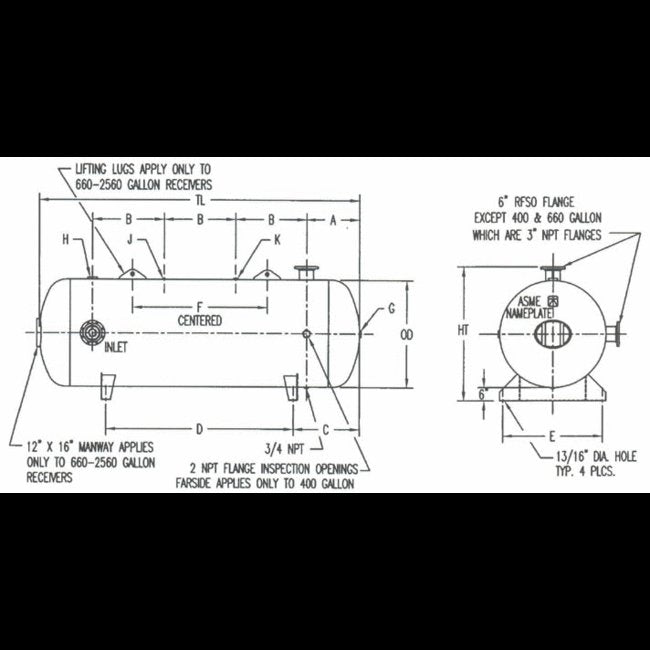

Specifications Dimension A
26.00 inches
Specifications Dimension B
38.00 inches
Specifications Dimension C
34.00 inches
Specifications Dimension D
98.00 inches
Specifications Dimension E
51.00 inches
Specifications Dimension F
76.00 inches
Specifications Ht
66.00 inches
Specifications Mawp
165 psi
Specifications Nominal Capacity
1550 gal | 207.22 ft³
Specifications Npt Opening G
2 inches
Specifications Npt Opening H
3 inches
Specifications Npt Opening J
1/4 inches
Specifications Npt Opening K
1 inches
Specifications Od
54.00 inches
Specifications Tl
166.00 inches
Specifications Tw
2700
