155mm Diameter Ceramic Capacitors for Power Applications
155mm Diameter Ceramic Capacitors for Power Applications
SKU:CER-799aa4
Enhance your power systems with SPHT 155mm Ceramic Capacitors. Reliable performance up to 30 kVDC, 90 kVA power rating, and versatile capacitance options.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
155mm Diameter Ceramic Capacitors for Power Applications
$49.99
Quantity: 1
Claim Your Seller Account
155mm Diameter Ceramic Capacitors for Power Applications
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

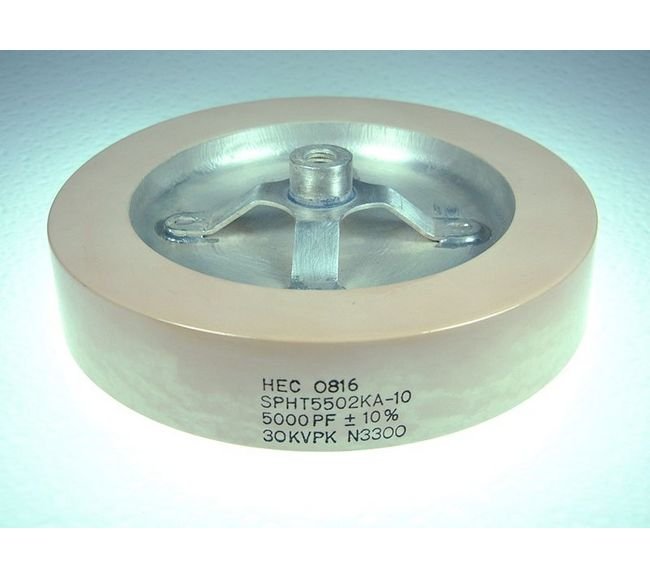

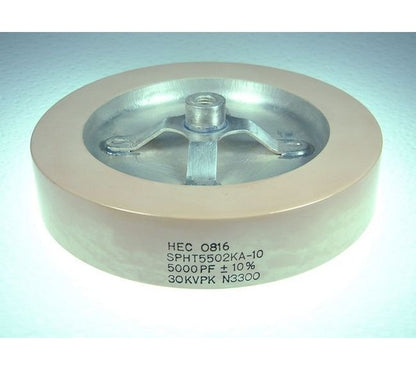

Upgrade your power system with our SPHT 155 mm Diameter Power Disk Ceramic Capacitors. With a reliable working voltage of up to 30 kVDC and a robust power rating of up to 90 kVA, these capacitors ensure stable performance. Ranging from 50 to 7000 pF capacitance, they offer versatility for various applications. Choose from 70, 100, 140, and 155 mm diameters to suit your specific needs. These capacitors come with a choice of four Class I TC's, providing precision and quality that meet stringent institutional procurement requirements.
Product Specifications
Specifications Cap
2000 pF

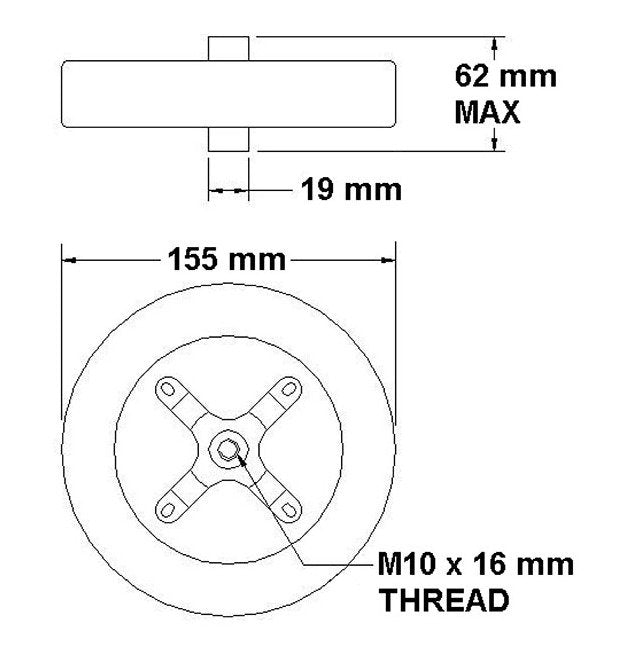

Specifications Diameter
155 mm
Specifications Dielectric Tc
N800
Specifications Fh
0.199 MHz
Specifications Fl
0.0159 MHz
Specifications Imax Rms
15 A
Specifications Smax
90 kV·A
Specifications Thread
M10
Specifications Vmax Dc
30 kV
